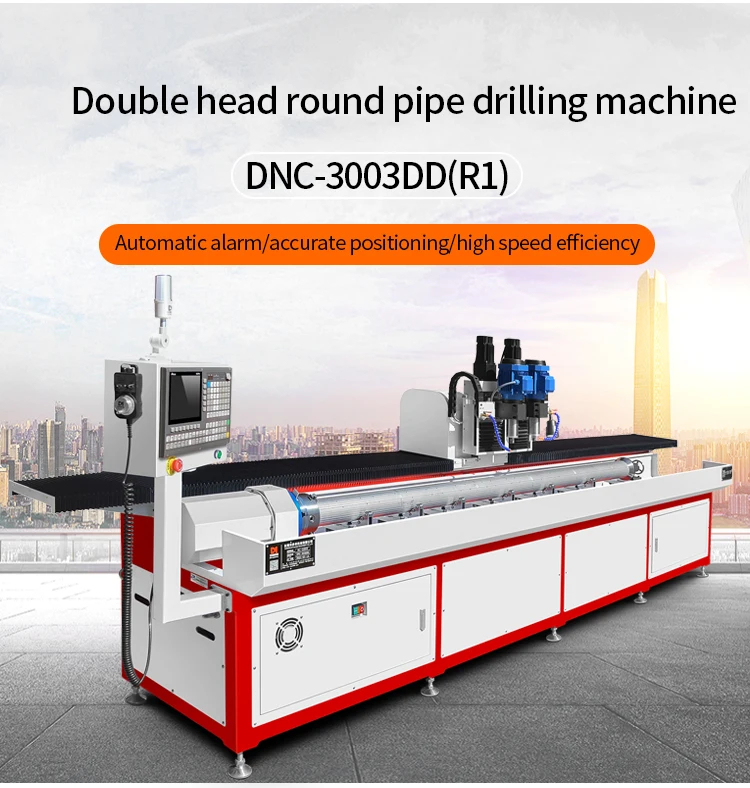

DNC-3003DD(R1) Automatic Rotation Axis 2 Spindles CNC Drill Press 4-axis Metal Square
Round Pipe Drilling And Tapping Machine
DUOMI CNC’s Round Pipe Drilling and Tapping Machine delivers precise hole drilling and threading for metal pipes, ensuring high efficiency, consistent quality, and reliable performance.
Product Paramenters
Machine type | DNC-3003DD（R1） |

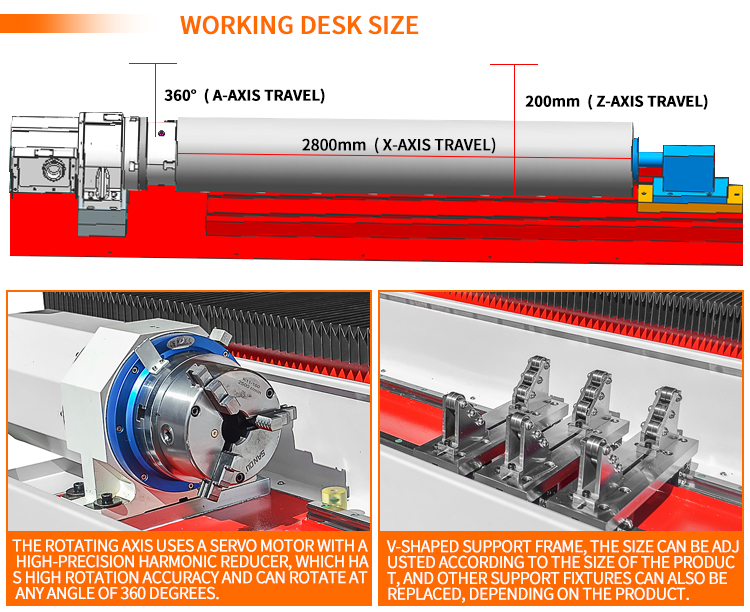

XZA three-axis machining stroke0 | X2800mm Z200mm A360° |
Spindle speed | 1500~24000rpm(Can be selected according to demand) |
Spindle taper hole | ER20 |
Spindle power | 0.55~3.0KW |
X axis moving speed | 30m/min~60m/min |
Y axis moving speed | 25m/min |
Z axis moving speed | 25m/min |
Borehole diameter range | 1~20mm |
Tapping diameter range | M2~M16 |
Chamfer diameter range | 1~20mm |
Rotating shaft clamping diameter | 10~200mm（Selection on demand） |
Tool magazine | Manual tool change |
Repeated positioning accuracy | ±0.02mm |
Programming mode | CAD file import/computer programming/manual programming |
System program storage capacity | About 10,000 |
System external signal control | support |
Operating voltage | AC 220V/50HZ |
Machine weight | Approx. 2000KG |
Floor space | 4200mm*1500mm*1700mm |
