DNC-640 5-Axis CNC Drilling Machine Vertical and Angled Holes Car Shock Absorbers Piston accessories_Duomi (Guangdong)Intelligent Equipment Co., Ltd.

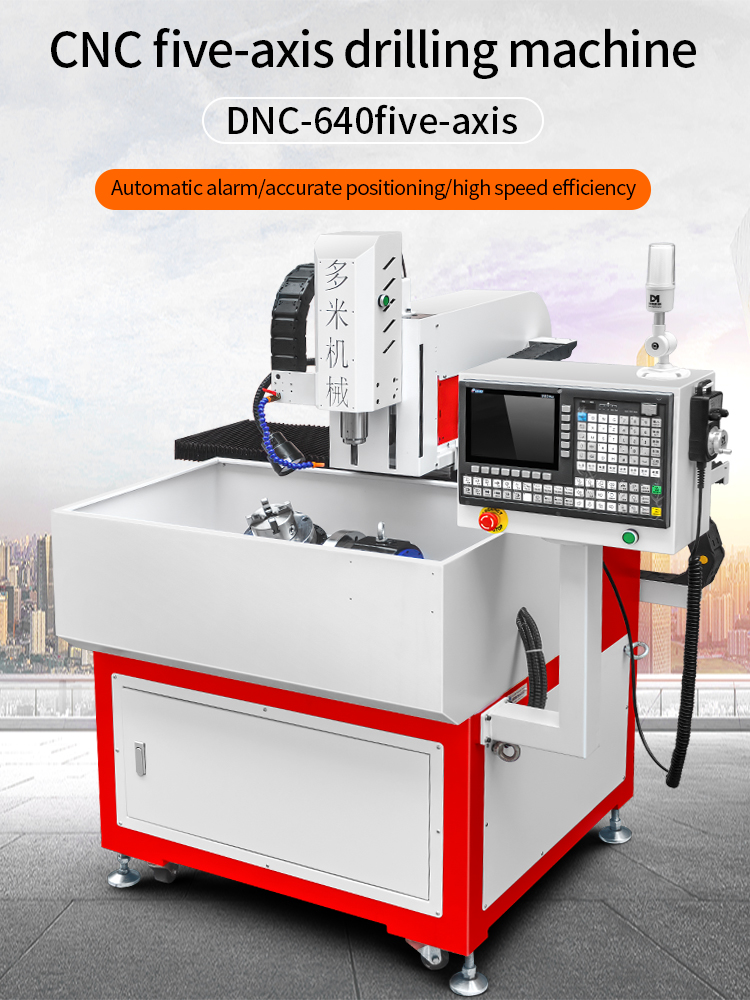

DNC-640 5-Axis CNC Drilling Machine For Vertical and Angled Holes Aluminium Steel

Automobile Shock Absorbers Piston accessories

The DUOMI CNC 5-Axis CNC Drilling Machine for aluminium and steel delivers high-speed precision machining, perfect for complex multi-angle holes in industrial production.

Machine type	DNC-640 five-axis
XYZAB axis machining stroke	X600mm Y400mm Z200mm A360° B180°
Spindle speed	1500~60000rpm(Can be selected according to demand)
Spindle taper hole	ER20
Spindle power	0.55-3.0KW
X axis moving speed	30m/min~60m/min
Y axis moving speed	25m/min
Z axis moving speed	25m/min
Borehole diameter range	0.15~16mm
Tool magazine	Manual tool change/pneumatic press tool change
Repeated positioning accuracy	±0.02mm
Programming mode	CAD file import/computer programming/manual programming
System program storage capacity	About 10,000
System external signal control	support
Operating voltage	AC 220V/50HZ
Machine weight	Approx. 600KG
Floor space	120010001700mm
