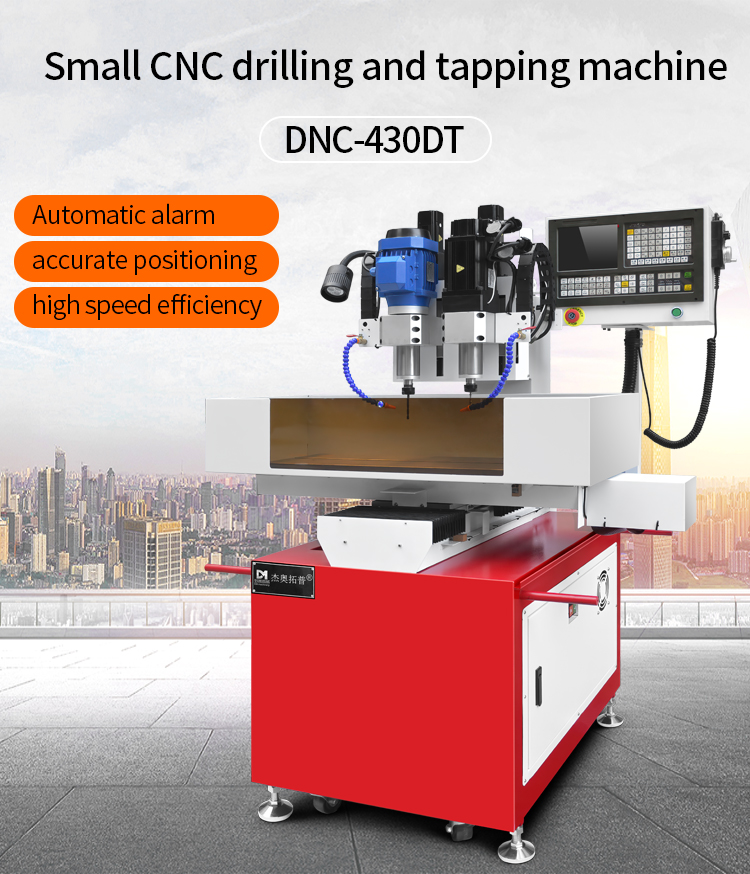

DNC-430DT Precision 3 Axis CNC Aluminium Steel Drill Press 2 Spindles Drilling Tapping Machine

Drilling diameter range:1~14mm

Tapping diameter range:M2~M14

Chamfer range:1~14mm

Spindle speed: 3000-60000 rpm

Taper spindle：ER20


/static/upload/image/20231214/1702538147783806.jpg
/static/upload/image/20231121/1700556766950777.jpg
/static/upload/image/20231121/1700556770673701.jpg
/static/upload/image/20231121/1700556773951205.jpg
/static/upload/image/20231214/1702538147783806.jpg
/static/upload/image/20231121/1700556766950777.jpg
/static/upload/image/20231121/1700556770673701.jpg
/static/upload/image/20231121/1700556773951205.jpg
  • Technical Data

DNC-430DT Automatic Precision 3 Axis CNC Aluminium Steel Copper Metal Sheet Drill Press 2 Spindles Drilling Tapping Machine


We mainly offer auto CNC drilling and tapping machines in these categories: - Flow drill drilling and tapping CNC Machine - Micro/small hole drilling machine series - Multi-axis drilling/tapping CNC machine series - Gantry Automatic Tool Change drilling tapping machines - OEM & ODM & drilling and tapping milling CNC Machine Duomicnc Keep Commitment to Quality! Whatsapp/Skype/WeChat: +86-18025205607 WhatsApp: +86-18025205607

Alibaba link: https://www.duomicnc.com/

Email: Service@xdmcnc.com Best Regards. Andrew Foreign Trade Manager Dongguan Duomi Machinery Co., Ltd


#drillpress #customizedmachine#microholedrilling #deepholedrilling #holemachining #precisionhole#3axis #3axiscnc #3axiscncmachine #3axiscncmill #3axismachining  #threeaxiscnc #3axlecnc #millingmachine #cncmillingmachine #cncmilling #endmilling #cncmillingmachineforsale#cnc #cncdrill #drillingandtapping #drill #drillpress #drillpressfordrill #drilling #drillingmachines #drillingmachine #precisiondrillpress #drillingequipment #drillers #driller #tapping #tappingmachine #cncdrillpress #cncdrillingmachine


Product Paramenters


Machine type

DNC-430DT

XYZ three-axis machining stroke0

X400mm Y300mm Z200mm

Spindle speed

1500~24000rpm(Can be selected according to demand)

Spindle taper hole

ER20

Spindle power

 0.55~3.0KW

X axis moving speed

25m/min

Y axis moving speed

25m/min

Z axis moving speed

25m/min

Borehole diameter range

1~14mm

Tapping diameter range

M2~M14

Chamfer diameter range

1~14mm

Tool magazine

Manual tool change

Repeated positioning accuracy

±0.02mm

Table size

400*280mm

Programming mode

CAD file import/computer programming/manual programming

System program storage capacity

About 10,000

System external signal control

support

Operating voltage

AC 220V/50HZ

Machine weight

Approx. 550KG

Floor space

1000*1000*1700mm


Recommended by seller

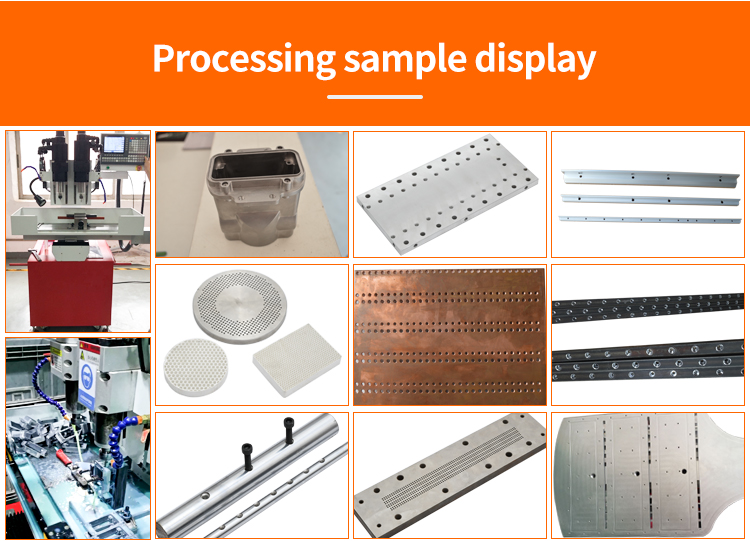

Partially processed products

Our Advantages

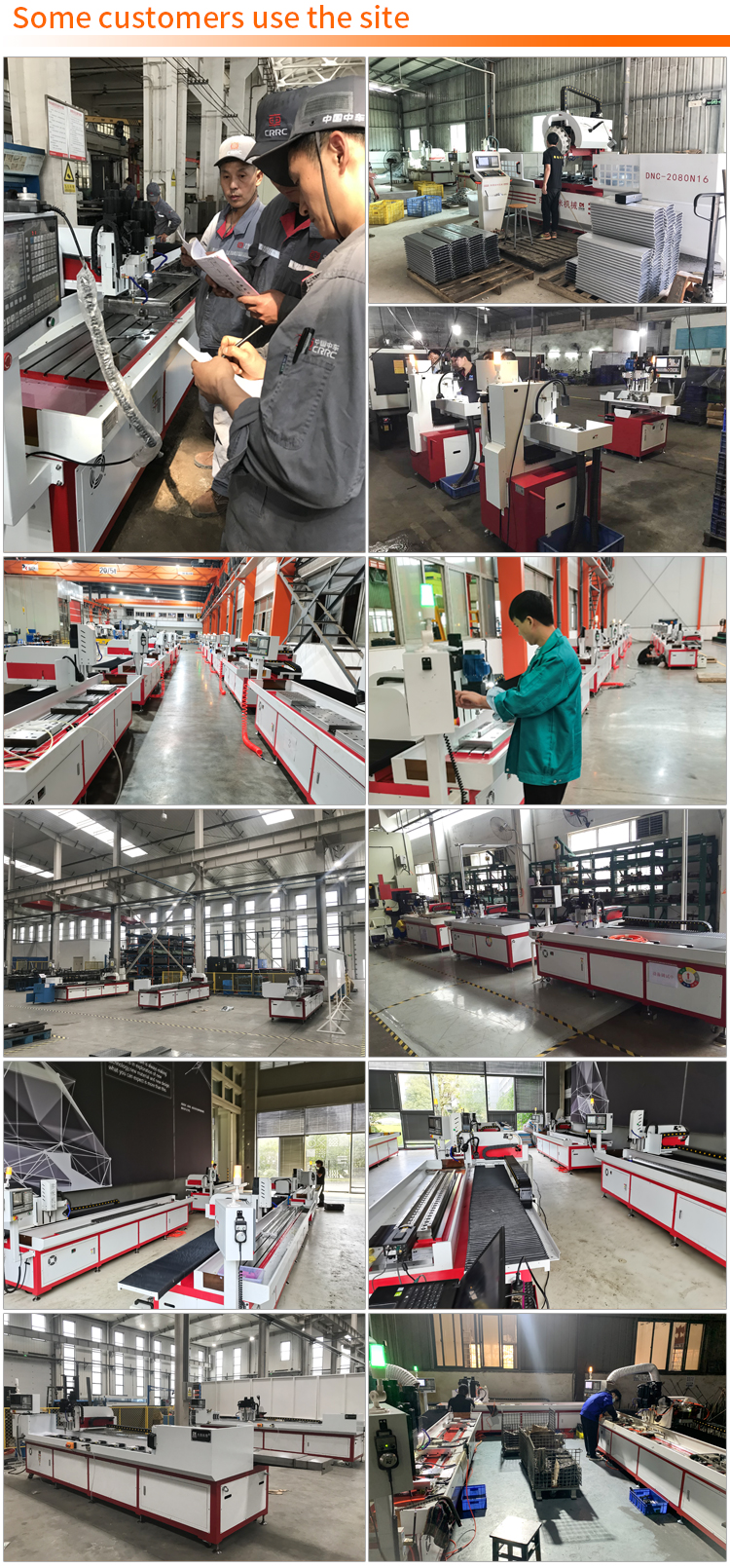

Customer Photos
