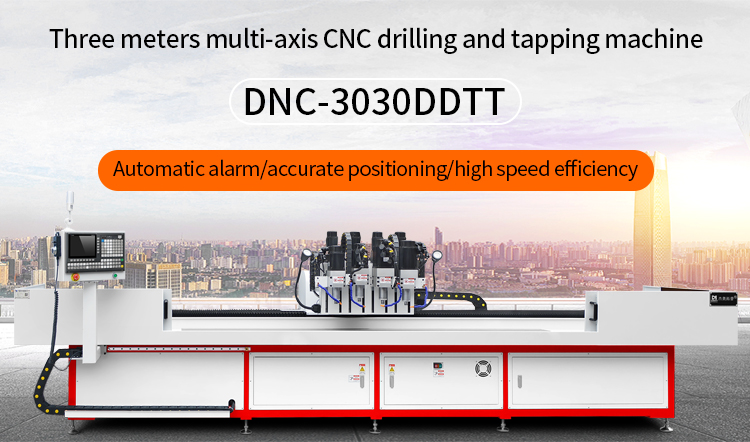

DNC-3030DDTT Precision Metal 3-Axis CNC Aluminium Steel Copper 2.8 meter Drill Press Automatic 4 Spindles Drilling Tapping Machine
DUOMI CNC’s 3-Axis CNC Steel Drill Press delivers precise, efficient drilling for steel parts, ensuring consistent quality, faster production, and reliable performance.
Machine type | DNC-3030DDTT |
XYZ three-axis machining stroke0 | X2800mm Y300mm Z200mm |
Spindle speed | 100~24000rpm(Can be selected according to demand) |
Spindle taper hole | ER20 |
Spindle power | 0.55~3.0KW |
X axis moving speed | 30m/min~60m/min |
Y axis moving speed | 25m/min |
Z axis moving speed | 25m/min |
Borehole diameter range | 1~20mm |
Tapping diameter range | M2~M14mm |
Chamfer range | 1~20mm |
Tool magazine | Manual tool change |

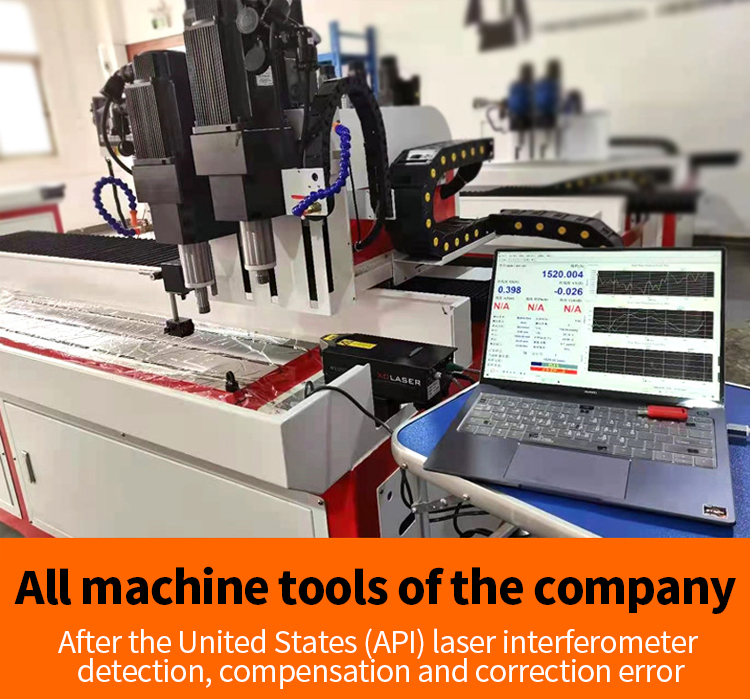

Repeated positioning accuracy | ±0.02mm |
Table size | 3000*280mm |
Programming mode | CAD file import/computer programming/manual programming |
System program storage capacity | About 10,000 |
System external signal control | support |
Operating voltage | AC 220V/50HZ |
Machine weight | Approx. 2600KG |
Floor space | 5500*1500*1700mm |

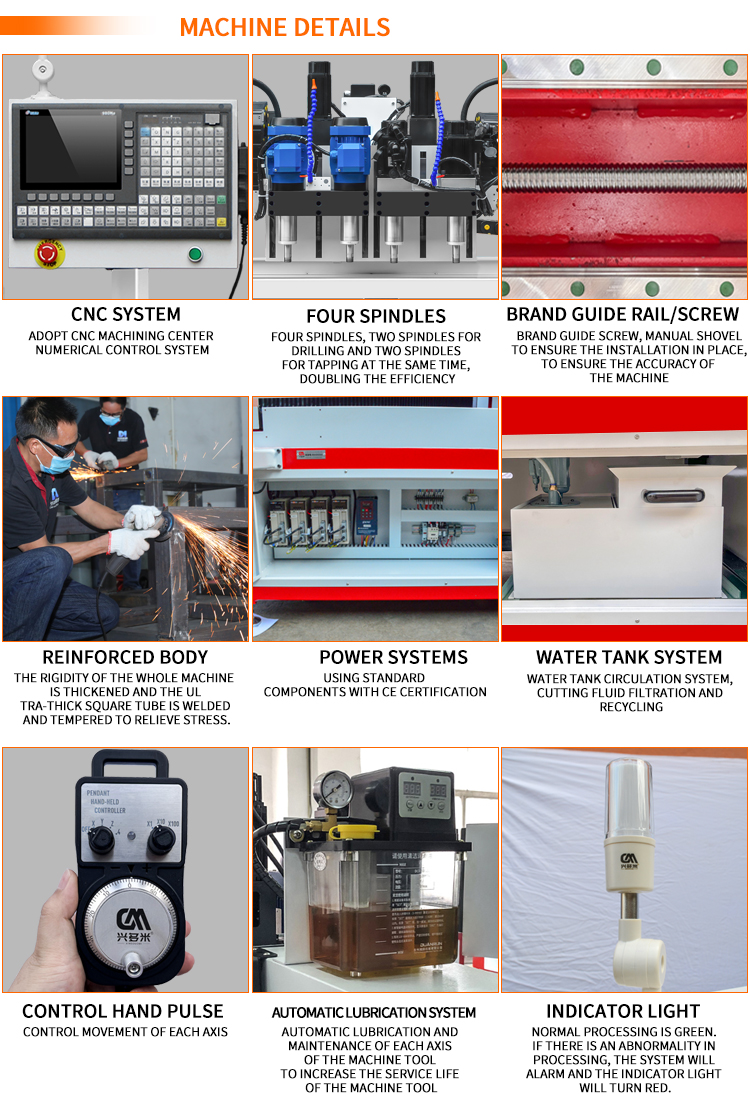

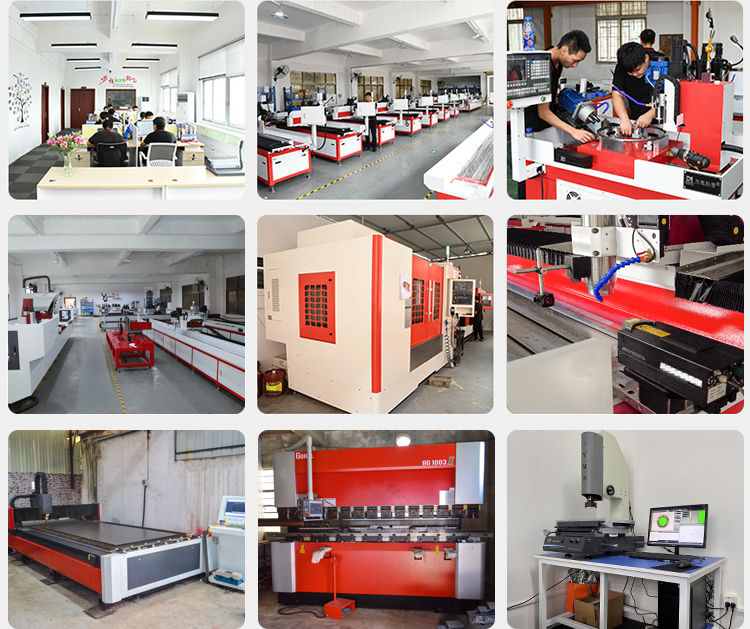

Our Advantages

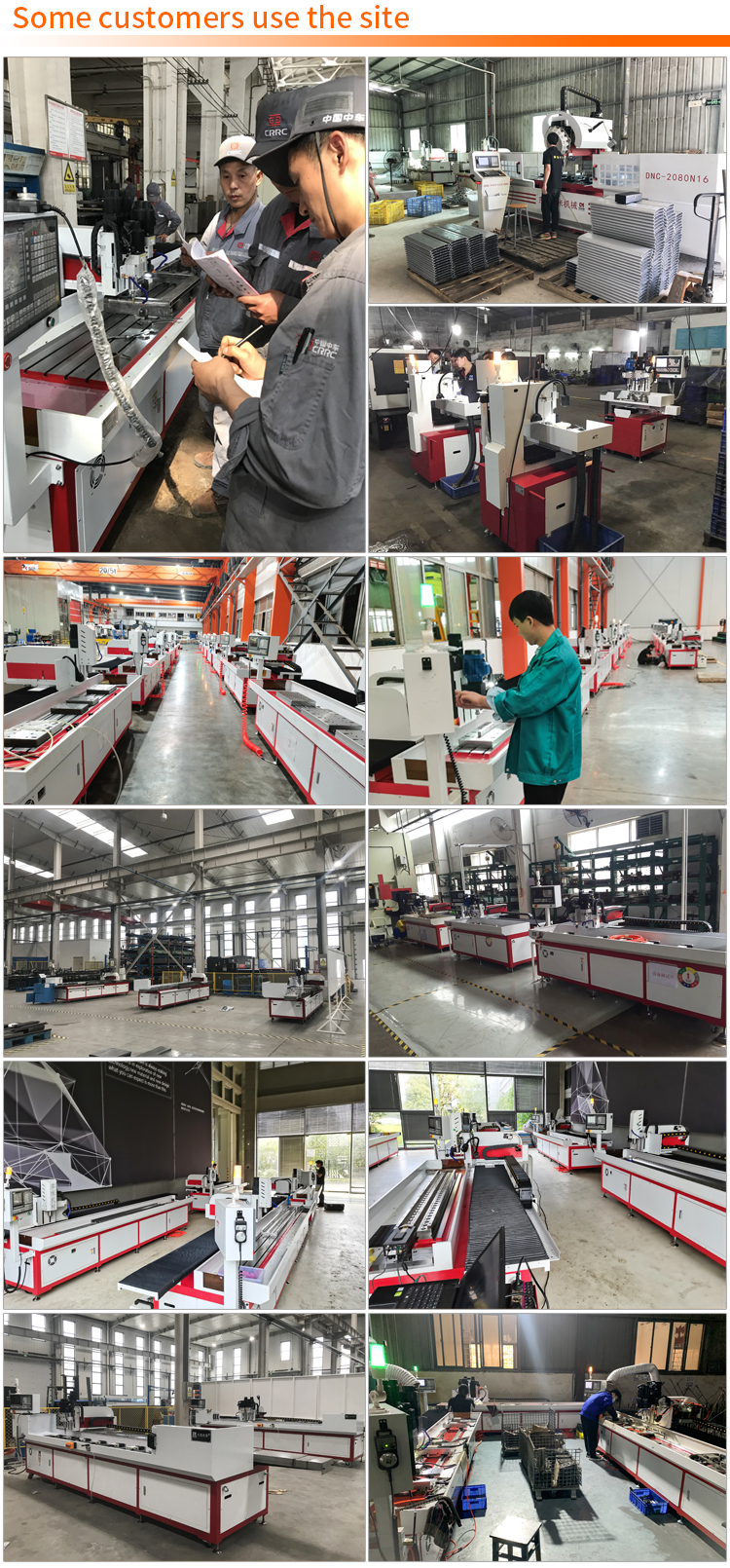

Customer Photos
