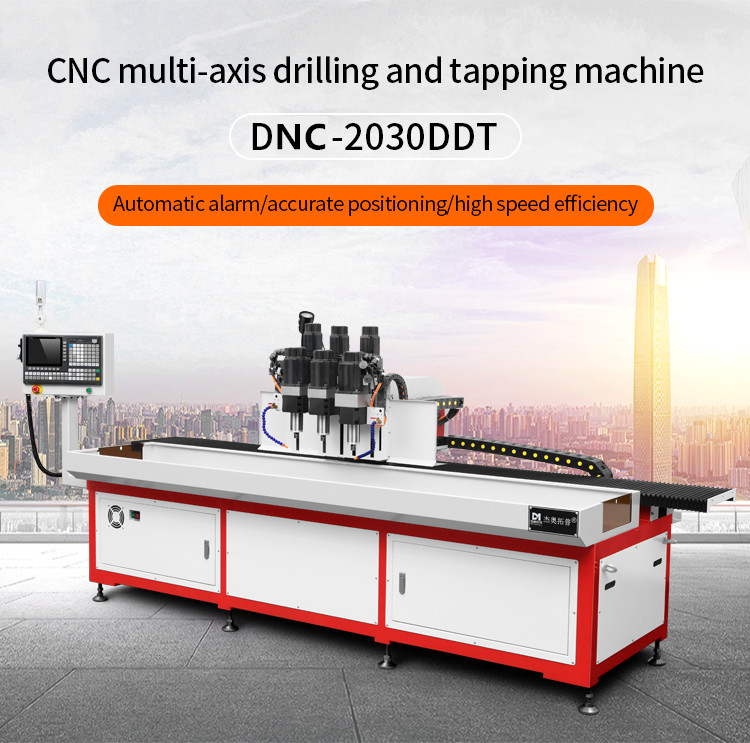

DNC-2030DDT 1.8 meter Precision Metal Steel Aluminium Copper 3 Spindles CNC Drill Press 3 Axis Drilling Tapping Machine
DUOMI CNC’s 3-Axis Drilling Tapping Machine delivers precise hole drilling and threading, enhancing efficiency and ensuring consistent, high-quality metal fabrication results.
Machine type | DNC-2030DDT |
XYZ axis machining stroke | X1800mm Y300mm Z200mm |
Spindle speed | 100~24000rpm(Can be selected according to demand) |
Spindle taper hole | ER20 |
Spindle power | 0.55~3.0KW |
X axis moving speed | 30m/min~60m/min |
Y axis moving speed | 25m/min |
Z axis moving speed | 25m/min |
Borehole diameter range | 1~20mm |
Tapping diameter range | M2~M14mm |
Chamfer range | 1~20mm |
Tool magazine | Manual tool change |
Repeated positioning accuracy | ±0.02mm |
Table size | 2000*280mm |
Programming mode | CAD file import/computer programming/manual programming |
System program storage capacity | About 10,000 |
System external signal control | support |
Operating voltage | AC 220V/50HZ |
Machine weight | Approx. 1700KG |
Floor space | 3500*1500*1700mm |
