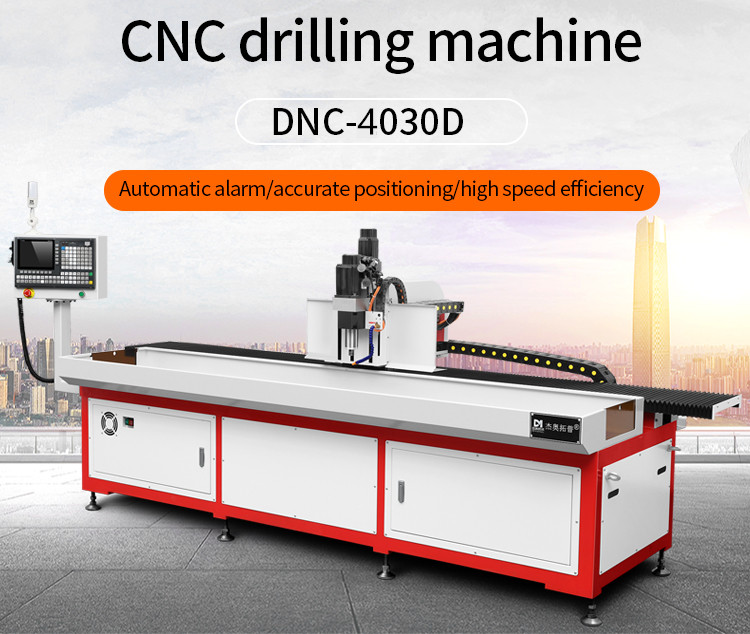

DNC-4030D Precision High Speed Aluminum Steel Metal Plate Auto Milling Drill Press Automatic CNC Drilling And Tapping Machine
DUOMI CNC’s Milling Drill Press combines precise drilling and efficient milling, ensuring high-quality metal processing and consistent performance for industrial manufacturing.
Product Paramenters
Machine type | DNC-4030D |
XYZ three-axis machining stroke0 | X4000mm Y300mm Z200mm |
Spindle speed | 1500~24000rpm(Can be selected according to demand) |
Spindle taper hole | ER20 |
Spindle power | 0.55~3.0KW |
X axis moving speed | 30m/min~60m/min |
Y axis moving speed | 25m/min |
Z axis moving speed | 25m/min |
Borehole diameter range | 1~20mm |
Chamfer diameter range | 1~20mm |
Tool magazine | Manual tool change |
Repeated positioning accuracy | ±0.02mm |
Table size | 4000*280mm |
Programming mode | CAD file import/computer programming/manual programming |
System program storage capacity | About 10,000 |
System external signal control | support |
Operating voltage | AC 220V/50HZ |
Machine weight | Approx. 2500KG |
Floor space | 5200*1500*1700mm |
