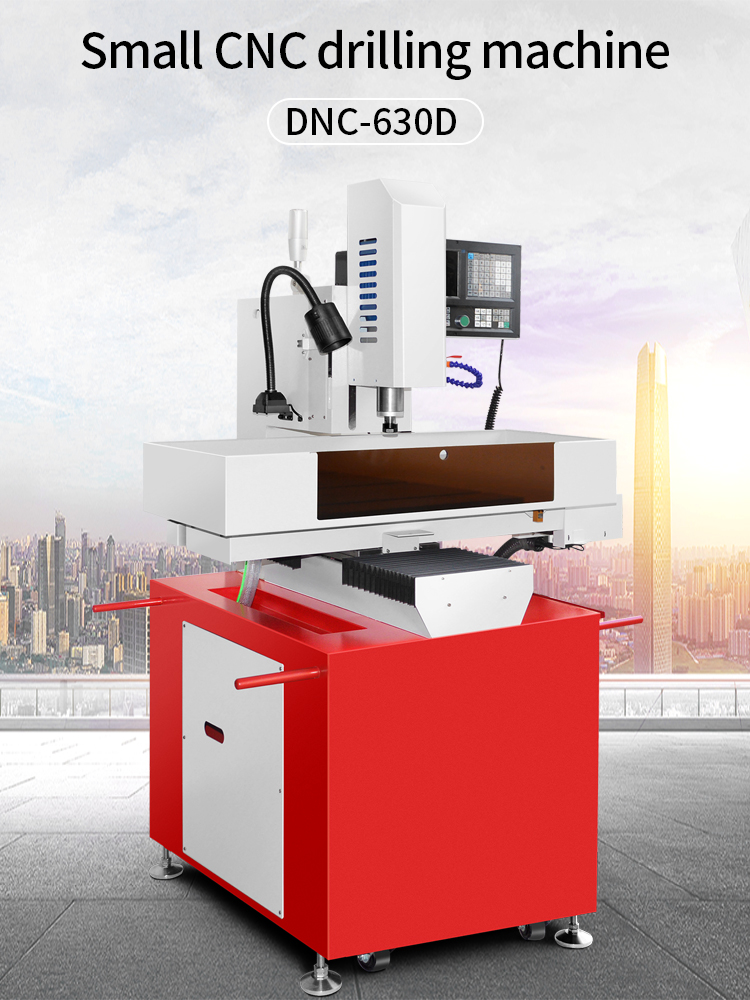

DNC-630D Precision Automatic CNC Copper Gas Stove Cover Hole Drilling Drill Press 1-14mm Manual Tool Change Drilling Machine
DUOMI CNC’s Automatic Hole Drilling Drill Press delivers stable, accurate drilling for metal parts, helping manufacturers boost efficiency with smooth, consistent performance.
Product Paramenters
Machine type | DNC-430D |

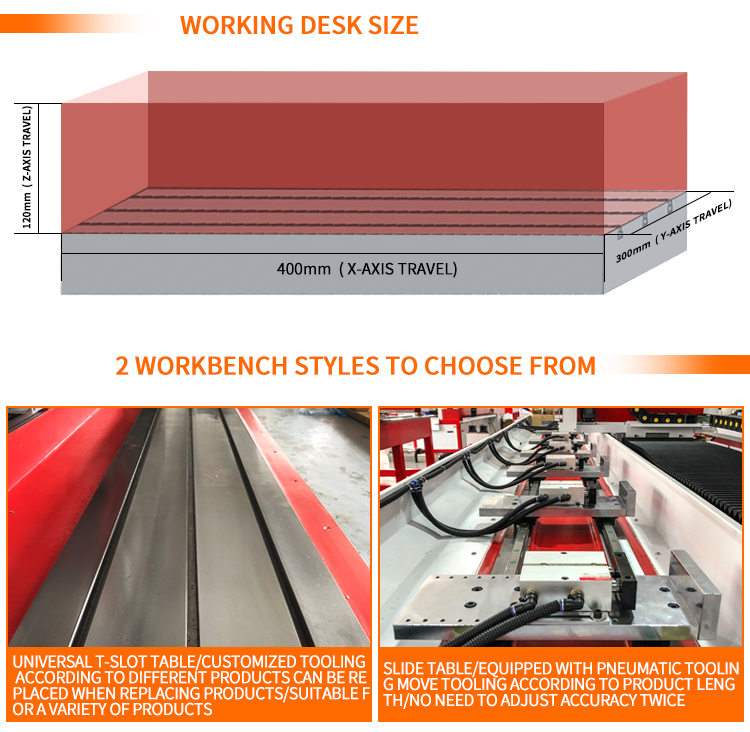

XYZ three-axis machining stroke0 | X400mm Y300mm Z120mm |
Spindle speed | 1500~24000rpm(Can be selected according to demand) |
Spindle taper hole | ER20 |
Spindle power | 0.55~3.0KW |
X axis moving speed | 30m/min~60m/min |
Y axis moving speed | 25m/min |
Z axis moving speed | 25m/min |
Borehole diameter range | 1~14mm |
Chamfer diameter range | 1~14mm |
Tool magazine | Manual tool change |

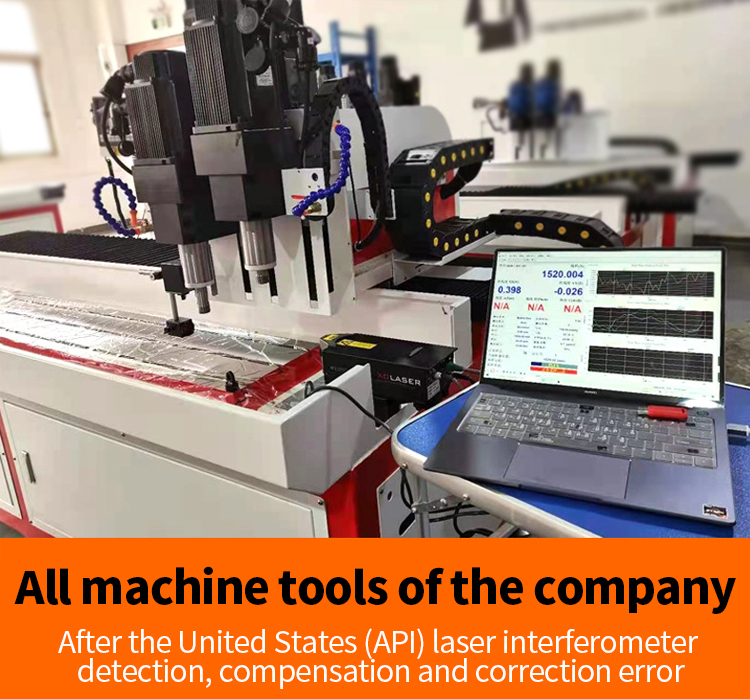

Repeated positioning accuracy | ±0.02mm |
Table size | 400*280mm |
Programming mode | CAD file import/computer programming/manual programming |
System program storage capacity | About 10,000 |
System external signal control | support |
Operating voltage | AC 220V/50HZ |
Machine weight | Approx. 500KG |
Floor space | 850*900*1700mm |

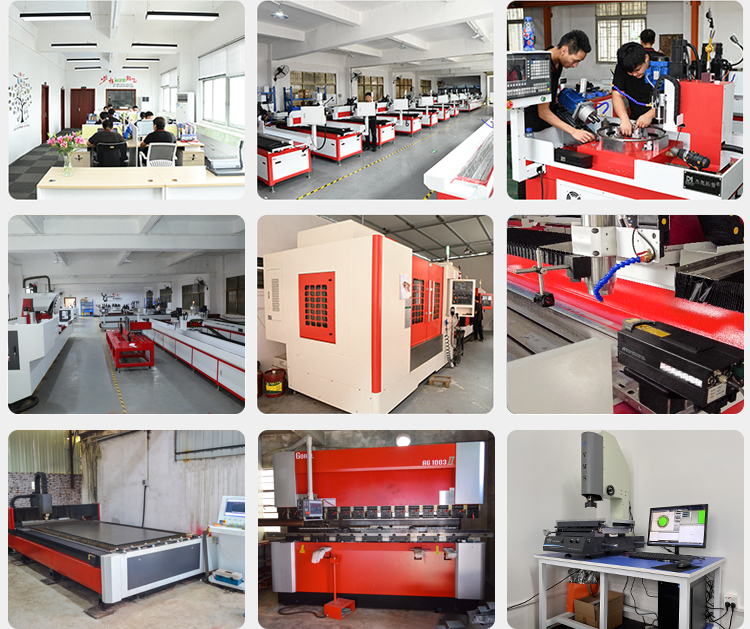

Our Advantages

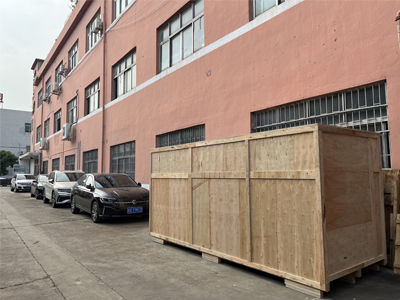

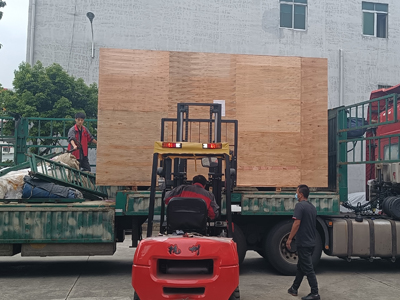

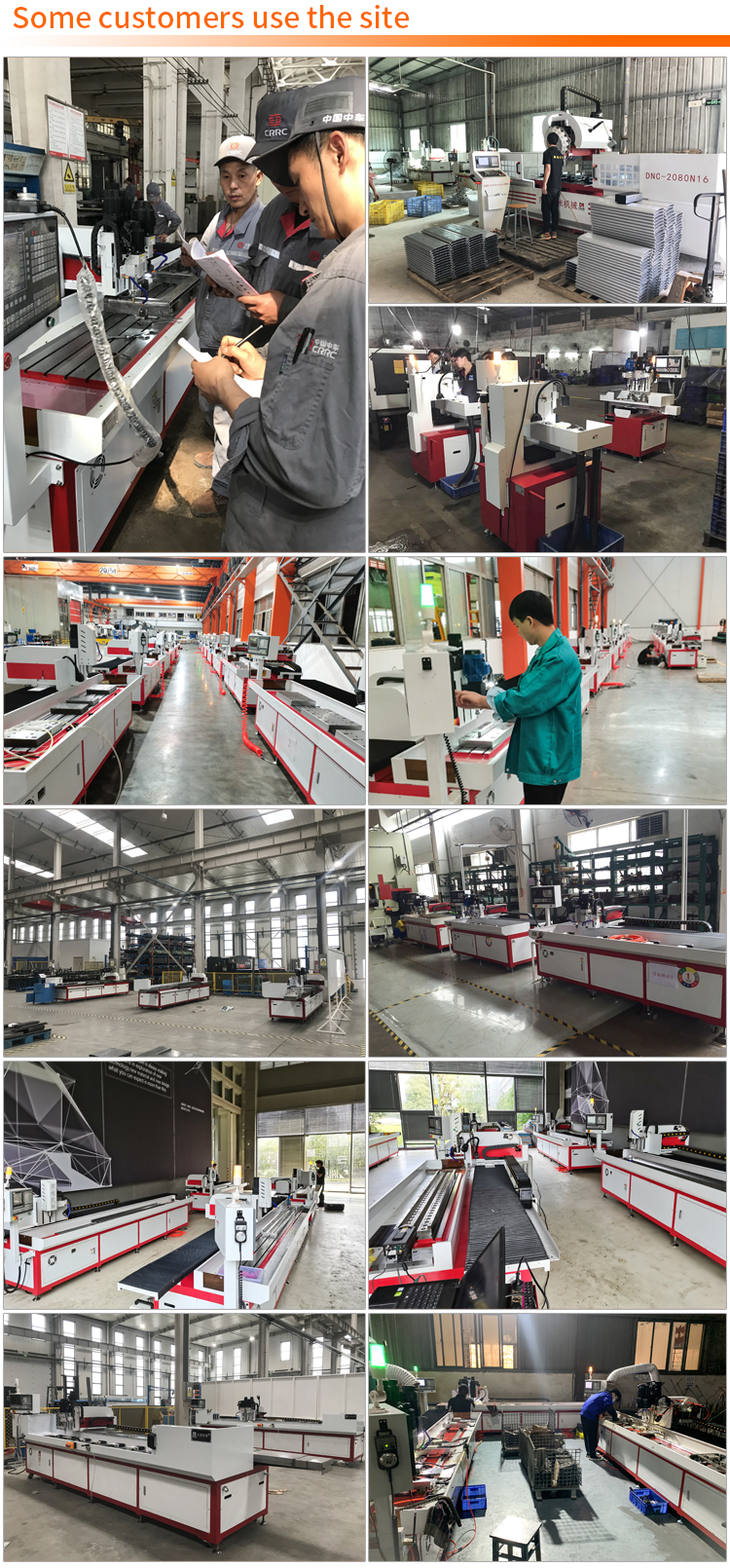

Customer Photos
