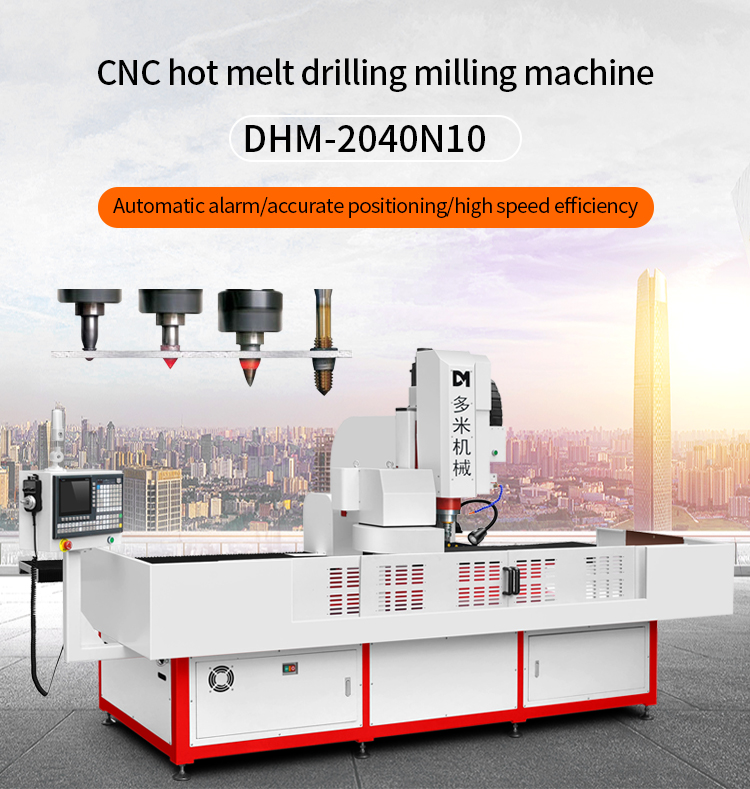

DUOMI CNC Flow Drill Machine: Friction-based flowdrilling forms tall, robust bushings in thin sheet metal for superior tapped threads – ditch weld nuts forever.

Machine type	DHM-2040N10
XYZ three-axis machining stroke0	X2000mm Y400mm Z200mm(Itinerary can be customized)
Spindle speed	3000~24000rpm(Can be selected according to demand)
Spindle taper hole	BT30
Spindle power	5.5~7.5KW
X axis moving speed	30m/min~60m/min
Y axis moving speed	25m/min
Z axis moving speed	25m/min
Borehole diameter range	1~18mm
Tapping range	M2~M16
Chamfer range	1~20mm
Tool magazine	Automatic tool change (10 knives)
Repeated positioning accuracy	±0.02mm
Table size	2000*380mm
T-slot size/number	Top width 13 x bottom width 20 x 3 pieces
Programming mode	CAD file import/computer programming/manual programming
System program storage capacity	About 10,000
System external signal control	support
Operating voltage	AC 380V/50HZ
Machine weight	Approx. 2100KG
Floor space	450020002000mm

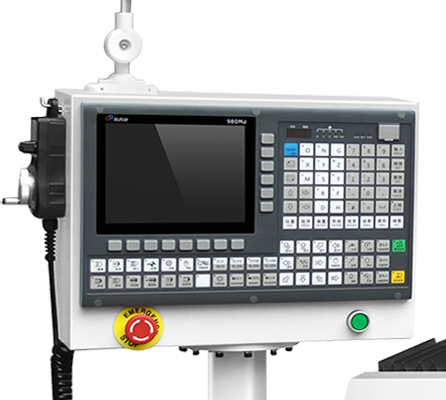

Numerical control system

Adopt cnc machining center numerical control system

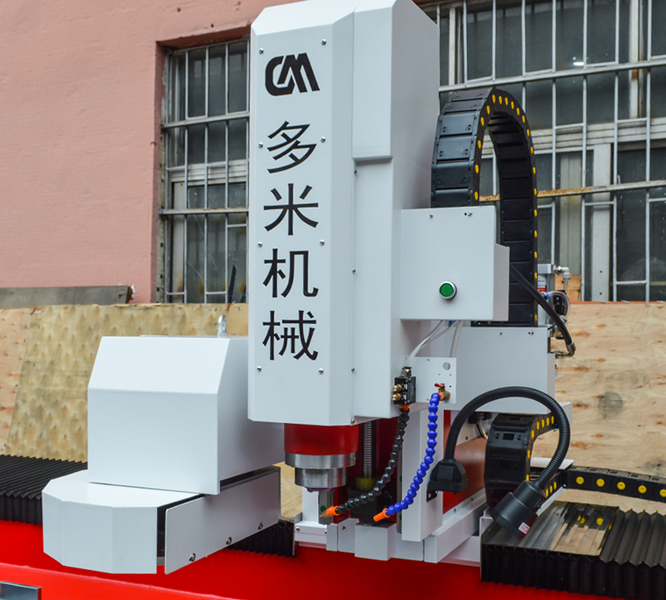

BT30 Mechanical spindle

With BT30 mechanical high torque spindle,

it is easier to process large aperture

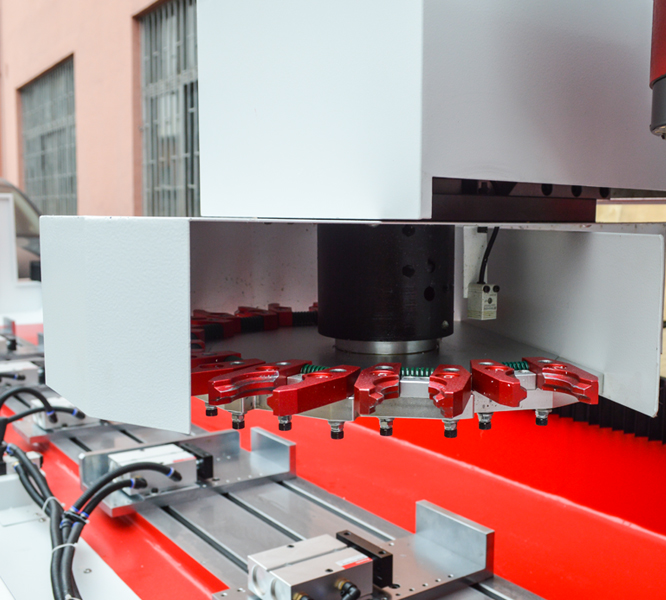

Follow the spindle tool library

Douli tool library (can hold 10 knives), move with

the spindle, change the tool anytime and anywhere,

save the time of changing the tool,

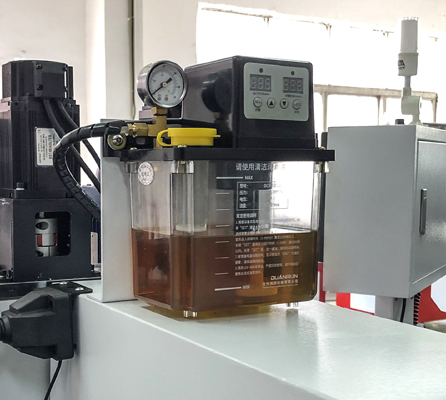

Automatic lubrication system

Each shaft of the machine is e quipped with an

automatic lub rication system/to extend the service

life of the transmissio n parts and reduce the

maintenance difficulty of workers

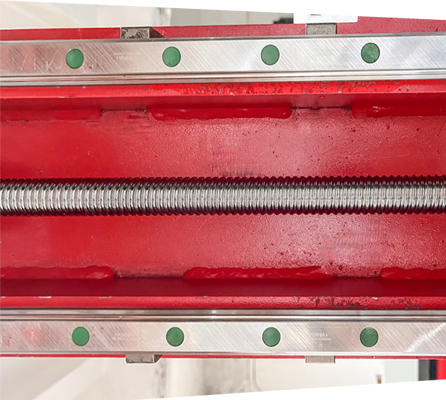

Brand guide screw

Brand guide screw, manual shovel to e nsure

the installat ion in place, to ensu re the accuracy of the machine

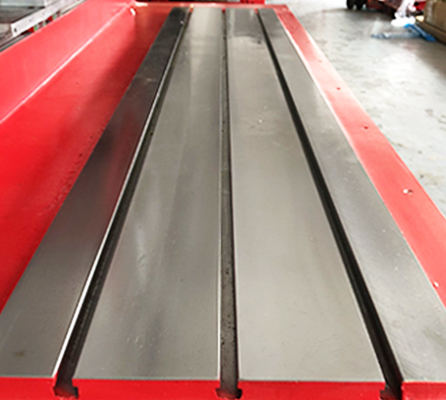

T-slot table

Universal T-slot table/Custo mized tooling according to d ifferent

productsTooling can be replaced when changing products/suitable

for a variety of products/Only one type of T-slot table or slide table

can be selected

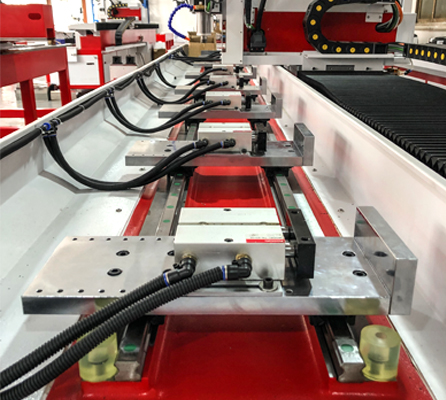

Rail table

Slide table/equipped with pneumatic toolinth/no need to adjust accuracy twice

g Move tooling according to product leng/Only one type of T-slot table or slide table can be selected
