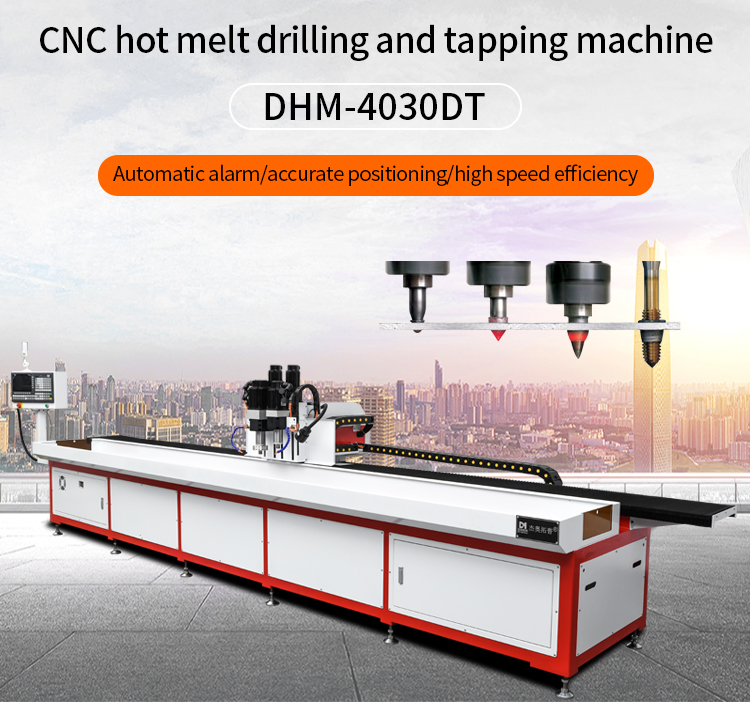

DHM-4030DT Flow Drill Machine Automatic Machines Friction Drill bit set M5 M6 M10 flowdrilling Steel Drilling Tapping CNC Press
DUOMI CNC Flow Drill Machine: Thermal flow drilling creates strong bushings in thin metal for reliable tapping – replaces weld nuts.
Machine type | DHM-4030DT |
XYZ three-axis machining stroke0 | X3000mm Y300mm Z200mm |
Spindle speed | 100~24000rpm(Can be selected according to demand) |
Spindle taper hole | ER20 |
Spindle power | 0.55~3.0KW |
X axis moving speed | 30m/min~60m/min |
Y axis moving speed | 25m/min |
Z axis moving speed | 25m/min |
Borehole diameter range | 1~12mm |
Tapping diameter range | M2~M12 |
Chamfer range | 1~20mm |
Tool magazine | Manual tool change |
Repeated positioning accuracy | ±0.02mm |
Table size | 3000*280mm |
Programming mode | CAD file import/computer programming/manual programming |
System program storage capacity | About 10,000 |
System external signal control | support |
Operating voltage | AC 220V/50HZ |
Machine weight | Approx. 2600KG |
Floor space | 5500*1500*1700mm |

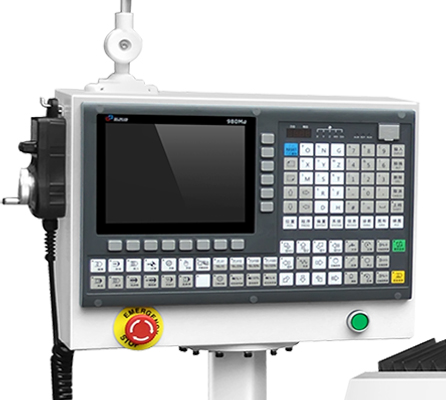

Numerical control system
Adopt cnc machining center numerical
control system

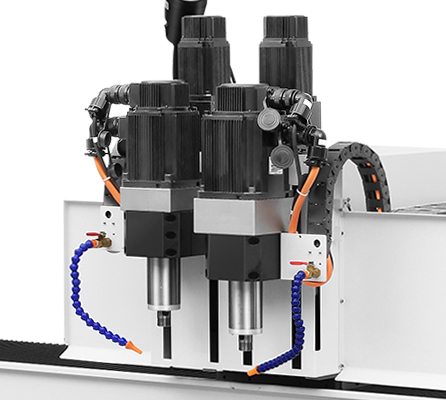

Servo double spindle
Servo drive double spindle, one spindl e drilling, one spin dle tapping, a clam ping to complete t wo processes

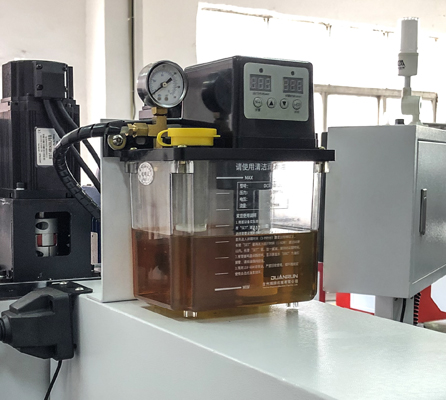

Automatic lubrication system
Each shaft of the machine is e
quipped with an automatic lub
rication system/to extend the
service life of the transmissio
n parts and reduce the mainte
nance difficulty of workers

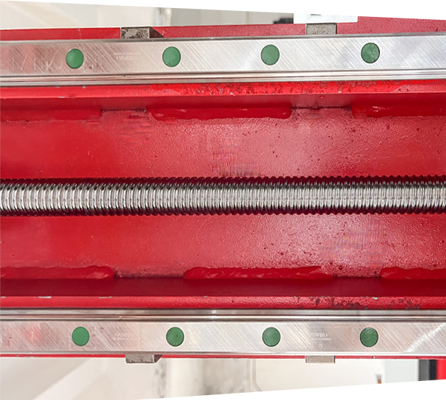

Brand guide screw
Brand guide screw, manual shovel to e nsure the installat ion in place, to ensu re the accuracy of the machine

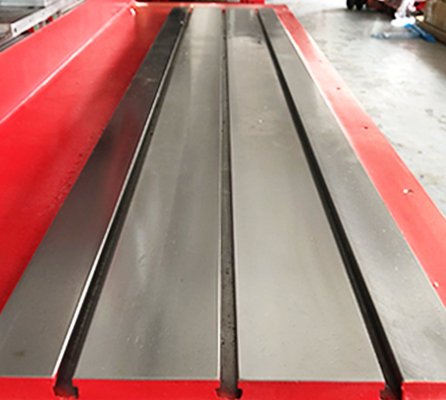

T-slot table
Universal T-slot table/Custo
mized tooling according to d
ifferent productsTooling ca
n be replaced when changing
products/suitable for a varie
ty of products/Only one type of T-slot table or slide table can be selected

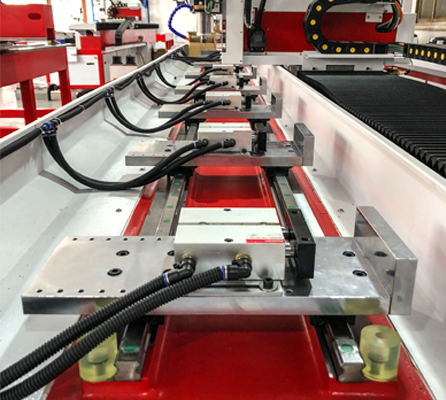

Rail table
Slide table/equipped with pneumatic toolinth/no need to adjust accuracy twice
g Move tooling according to product leng/Only one type of T-slot table or slide table can be selected
