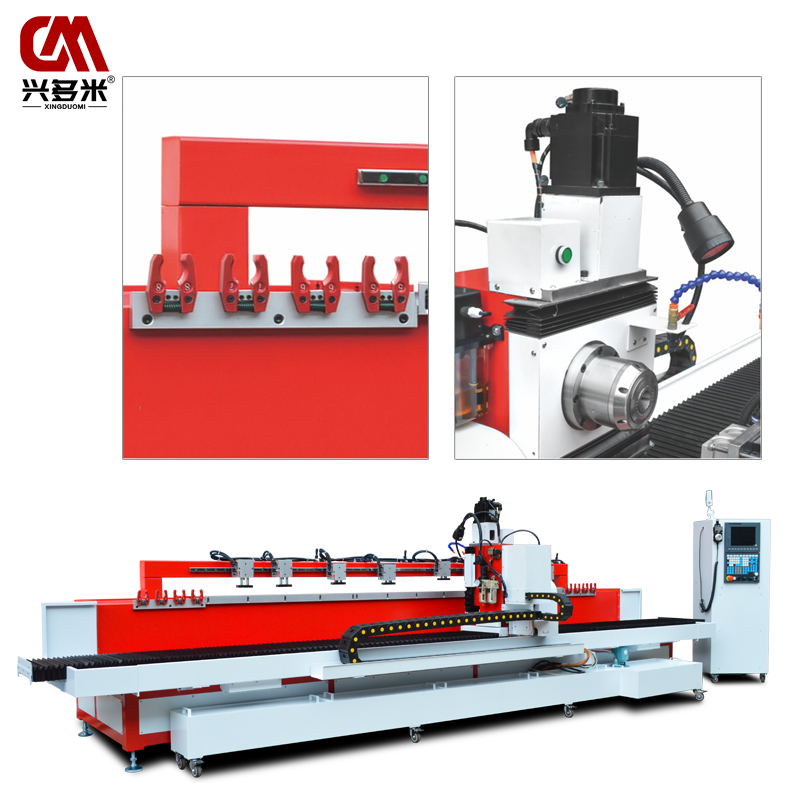

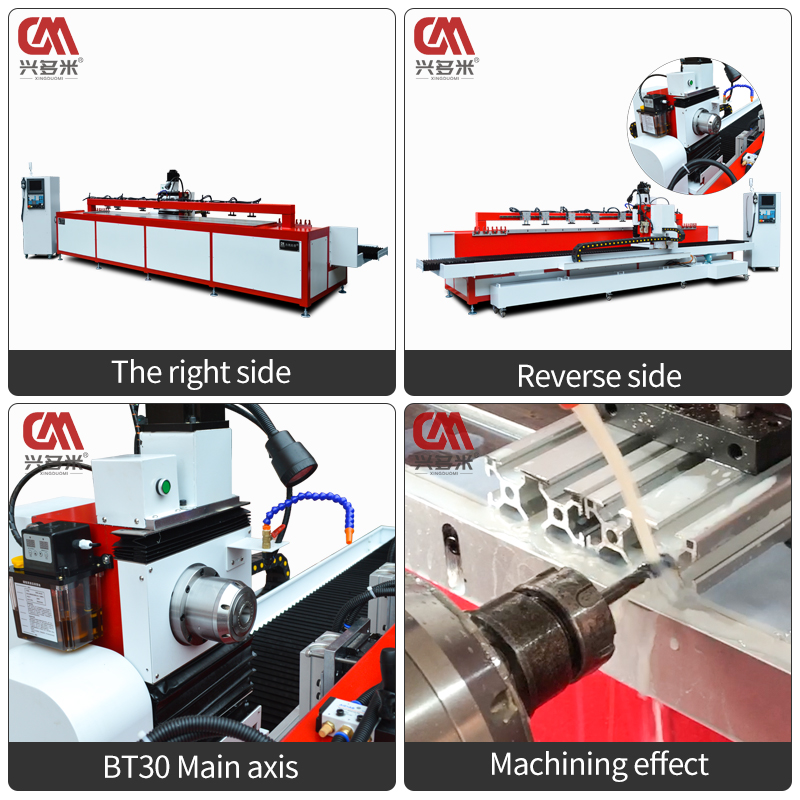

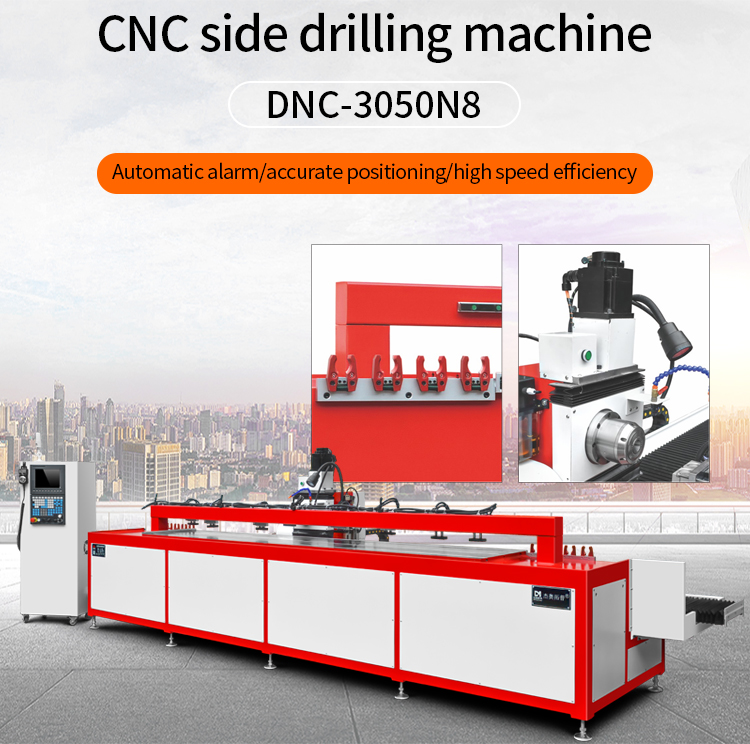

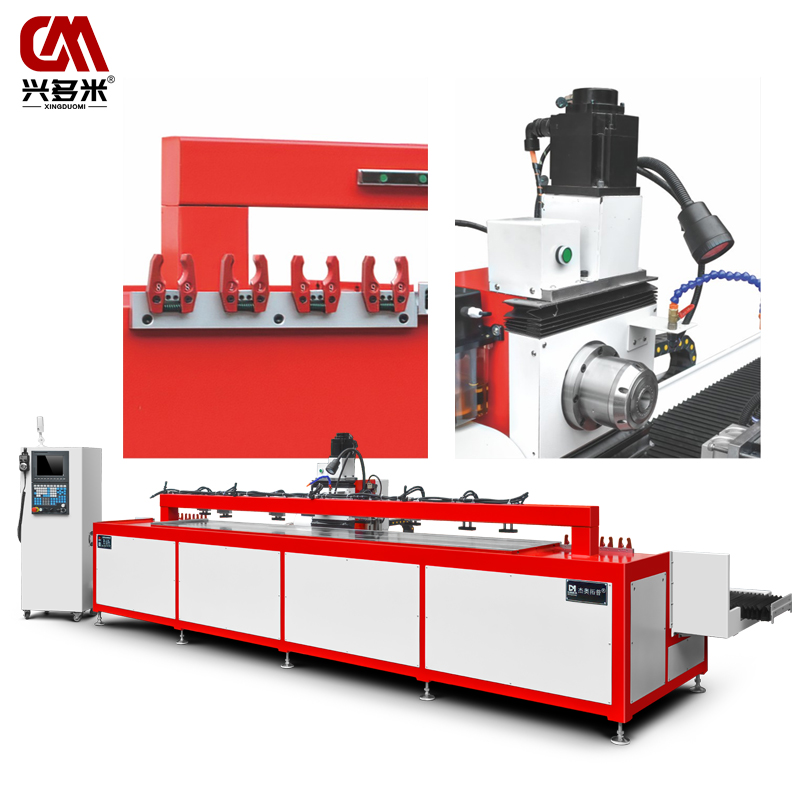

DNC-3050N8 Customized Automatic Tool Change 3 Meter Metal 3-axis CNC
Horizontal 1-20mm Hole M2-M20 Drilling and Tapping Machine
DUOMI CNC’s Horizontal Drilling and Tapping Machine provides precise horizontal hole drilling and threading for metal parts, ensuring high efficiency and consistent, reliable quality.
Product Paramenters
Machine type | DNC-3050N8 |

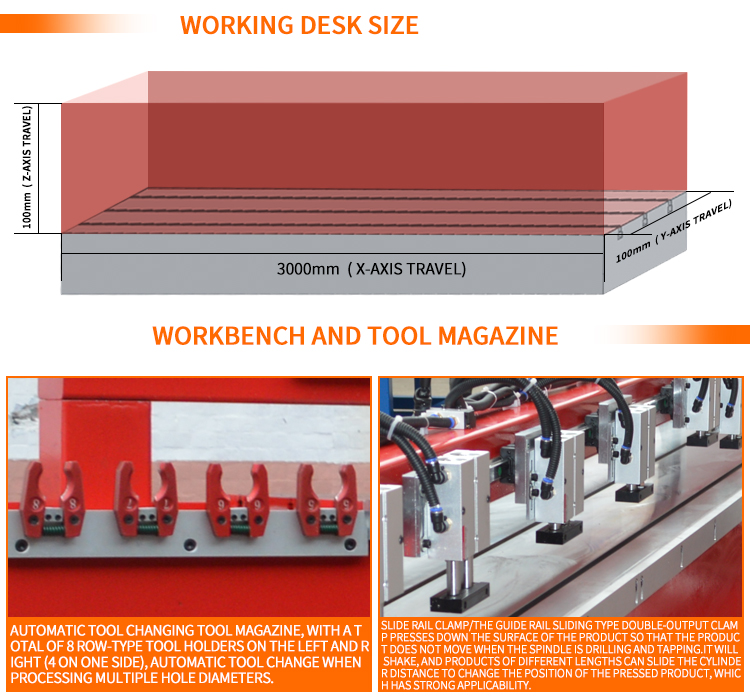

XYZ three-axis machining stroke | X3000mm Y100mm Z100mm |
Spindle speed | 1000~24000rpm(Can be selected according to demand) |
Spindle taper hole | BT30 |
Spindle power | 5.5-7.5KW |
X axis moving speed | 30m/min~60m/min |
Y axis moving speed | 25m/min |
Z axis moving speed | 25m/min |
Borehole diameter range | 1~20mm |
Tapping diameter range | M2~M20 |
chamfer | 1~20mm |
Tool magazine | Automatic tool change (8 knives) |
Repeated positioning accuracy | ±0.03mm |
Table size | 3000*500mm |
Programming mode | CAD file import/computer programming/manual programming |
System program storage capacity | About 10,000 |
System external signal control | support |
Operating voltage | AC 380V/50HZ |
Machine weight | Approx. 2000KG |
Floor space | 4800*2500*2000mm |
