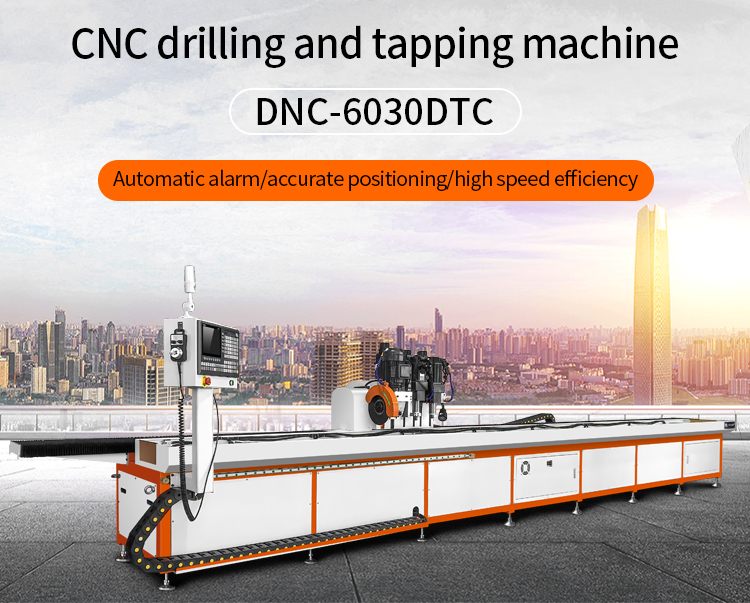

DNC-6030DTC Customized Friction Flow Drill Precision 6 Meter CNC Steel Metal
Manual Tool Change Drilling Tapping Cutting Machine
DUOMI CNC’s Friction FlowDrill Machine delivers precise, burr-free hole forming and threading on metal parts, boosting efficiency and ensuring consistent, high-quality results.
Machine type | DNC-6030DTC |
XYZ three-axis machining stroke0 | X6000mm Y300mm Z200mm |
Spindle speed | 1000~24000rpm(Can be selected according to demand) |
Spindle taper hole | ER20 |
Spindle power | 0.55~3.0KW |
Cutting spindle speed | 0~3000rpm(Optional) |
Cutting spindle power | 2.6kw |
X axis moving speed | 30m/min~60m/min |
Y axis moving speed | 25m/min |
Z axis moving speed | 25m/min |
Borehole diameter range | 1~20mm |
Tapping diameter range | M2~M14 |
Tool magazine | Manual tool change |
Repeated positioning accuracy | ±0.02mm |
Table form | T-slot table/Slide table (optional on demand) |
Programming mode | CAD file import/computer programming/manual programming |
System program storage capacity | About 10,000 |
System external signal control | support |
Operating voltage | AC 380V/50HZ |
Machine weight | Approx. 4500KG |
Floor space | 8000*1500*1700mm |
