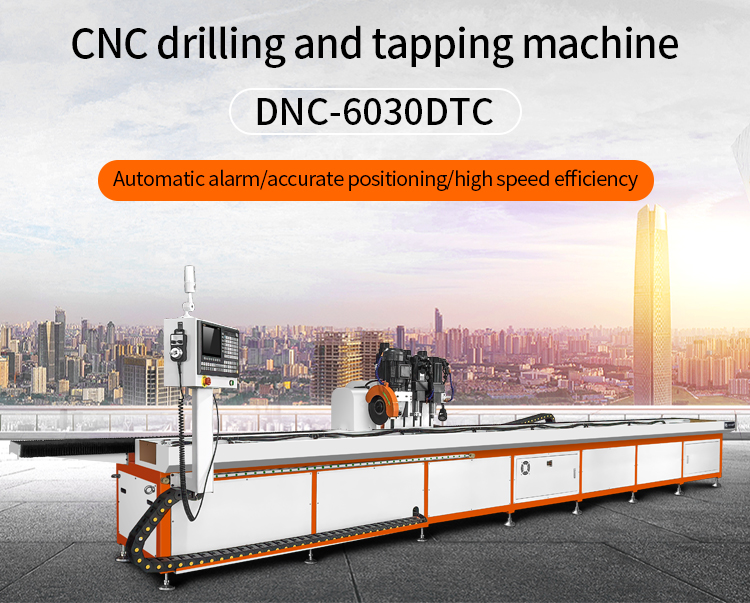

DNC-6030DTC Customized Friction Flow Drill Metal Manual Tool Change Drilling Tapping Cutting Machine_Duomi (Guangdong)Intelligent Equipment Co., Ltd.

DNC-6030DTC Customized Friction Flow Drill Precision 6 Meter CNC Steel Metal

Manual Tool Change Drilling Tapping Cutting Machine

DUOMI CNC’s Drilling Tapping Cutting Machine combines precise drilling, threading, and cutting in one setup, boosting efficiency and ensuring consistent, high-quality metal processing.

Machine type	DNC-6030DTC
XYZ three-axis machining stroke0	X6000mm Y300mm Z200mm
Spindle speed	1000~24000rpm(Can be selected according to demand)
Spindle taper hole	ER20
Spindle power	0.55~3.0KW
Cutting spindle speed	0~3000rpm(Optional)
Cutting spindle power	2.6kw
X axis moving speed	30m/min~60m/min
Y axis moving speed	25m/min
Z axis moving speed	25m/min
Borehole diameter range	1~20mm
Tapping diameter range	M2~M14
Tool magazine	Manual tool change
Repeated positioning accuracy	±0.02mm
Table form	T-slot table/Slide table (optional on demand)
Programming mode	CAD file import/computer programming/manual programming
System program storage capacity	About 10,000
System external signal control	support
Operating voltage	AC 380V/50HZ
Machine weight	Approx. 4500KG
Floor space	800015001700mm
