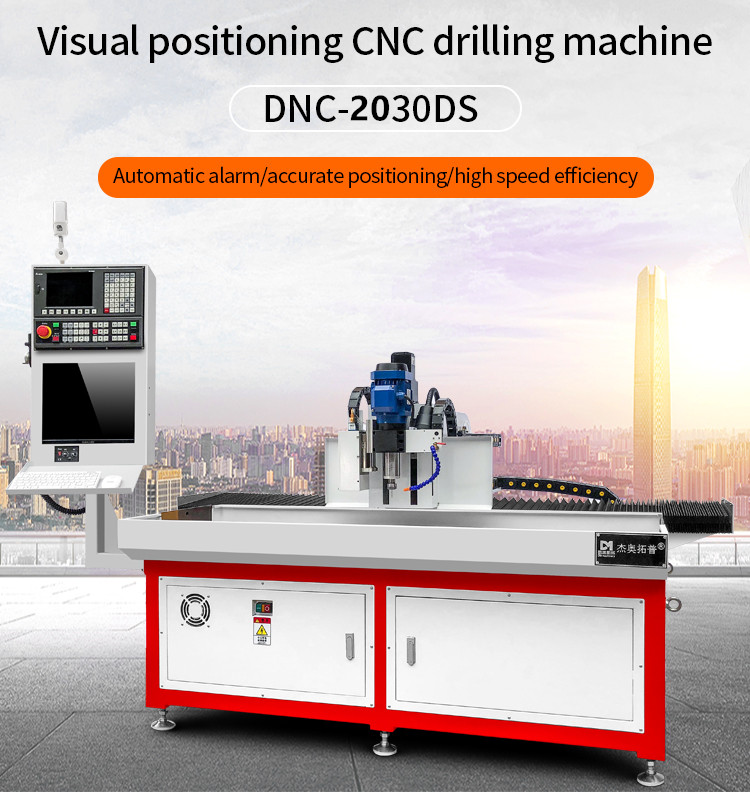

DNC-2030DS CCD Visual Positioning 3 Axis Drilling Reaming Machine Precision Metal
Steel Aluminium Copper Auto CNC Drill Press
DUOMI CNC’s Auto CNC Drill Press delivers precise, automated drilling for metal parts, boosting production efficiency and ensuring consistent, high-quality industrial results.
Machine type | DNC-2030DS |
XYZ three-axis machining stroke0 | X3800mm Y300mm Z200mm |

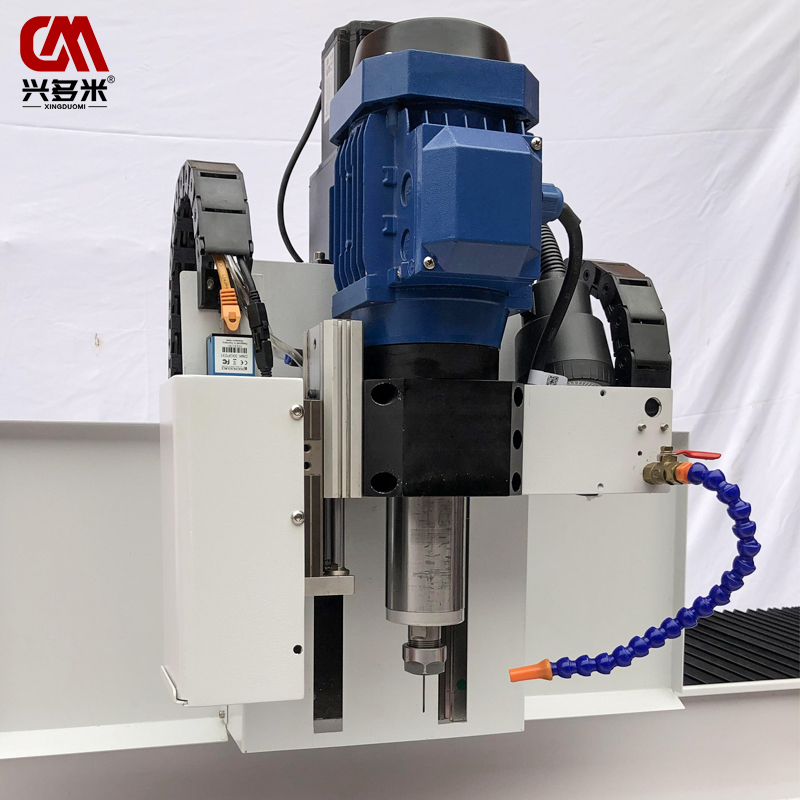

Spindle speed | 3000~60000rpm(Can be selected according to demand) |
Spindle taper hole | ER20 |
Spindle power | 0.55~3.0KW |
X axis moving speed | 30m/min~60m/min |
Y axis moving speed | 25m/min |
Z axis moving speed | 25m/min |
Borehole diameter range | 1~20mm |
chamfer | 1~20mm |
Tool magazine | Manual tool change |

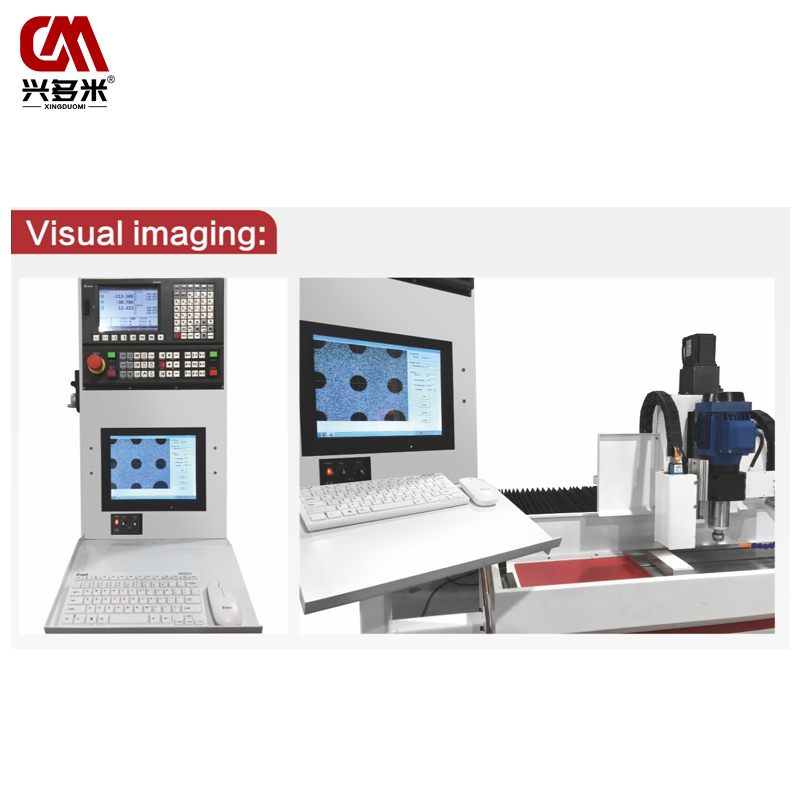

CCD visual positioning | Automatic identification of hole positions |
Repeated positioning accuracy | ±0.02mm |
Table form | T-slot table/Slide table (optional on demand) |

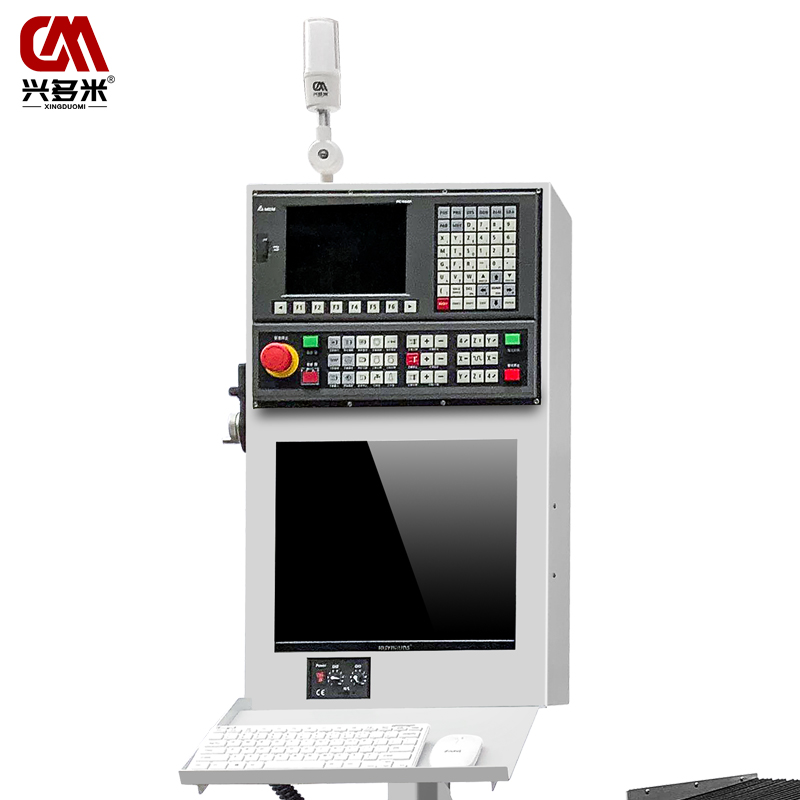

Programming mode | CAD file import/computer programming/manual programming |
System program storage capacity | About 10,000 |
System external signal control | support |
Operating voltage | AC 220V/50HZ |
Machine weight | Approx. 1600KG |
Floor space | 3500*1500*1700mm |
