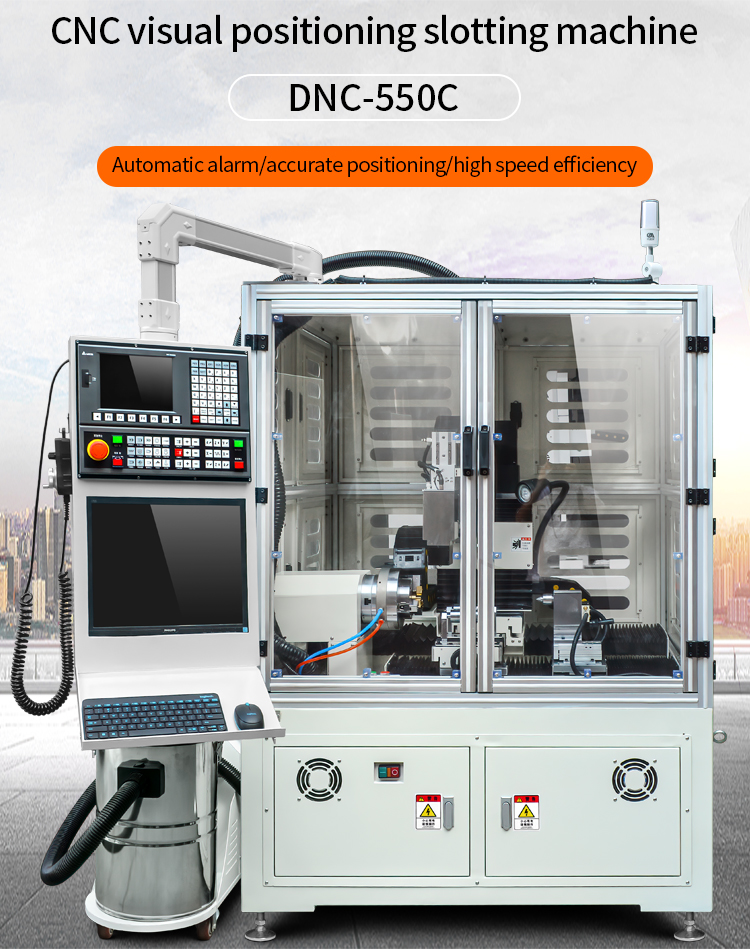

DNC-550C CCD Visual Positioning Cutting Slotting CNC Aluminium Auto V Metal
Copper Motor Rotor Automatic Pipe Grooving Machine
DUOMI CNC’s Automatic Pipe Grooving Machine provides precise, efficient grooving for metal pipes, enhancing production speed and ensuring consistent, high-quality results.
Machine type | DNC-550C |
XYZA four-axis machining stroke | X550mm Y100mm Z100mm A360° |
Cutting spindle speed | 1000~6000rpm(Can be selected according to demand) |
Cutting spindle power | 0.55~3.0KW |
A-axis rotation accuracy/radial runout | ±0.015mm |
A-axis rotation accuracy/axial runout | ±0.015mm |
Bearing support frame/center height | 130~150mm |
Bearing support frame/length | 50~550mm |
Bearing support frame/rotor support | Scroll/manual adjustable |
Dust absorption parameter | ≥3.0kw Air volume：≥300m3/Hour (s) |
Outer diameter of the core | 0-∅200mm |
Repeated positioning accuracy | ±0.02mm |
Clamping diameter range | ∅50~80mm |
Identification system | CCDImage measurement |
Identification slot number | 0~120 |
System program memory | No less than 50 groups |
Working pressure | ≤0.6MPa |
Operating voltage | AC 220V/50HZ |
Machine weight | Approx. 1600KG |
Floor space | 1400*1600*2100mm |
