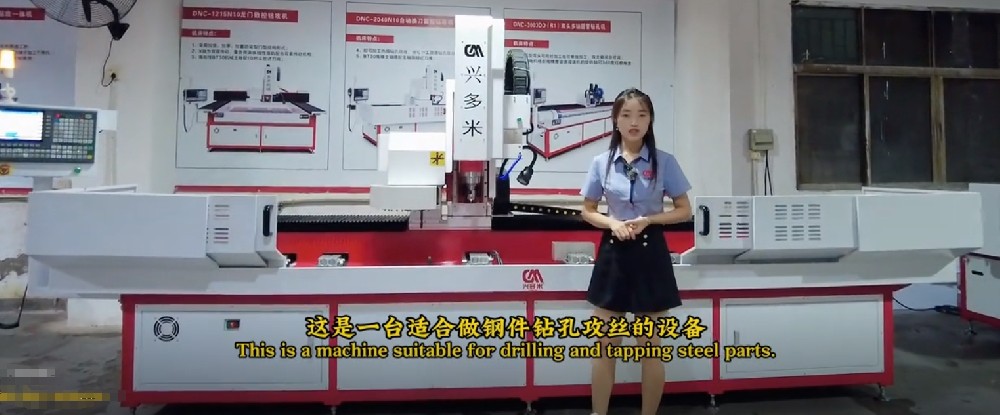

This is a CNC drilling and tapping machine suitable for drilling and tapping steel parts. It uses a high-power and high rigidity BT30 mechanical spindle imported from Taiwan, which can be used for both hot melt drilling and tapping processes as well as ordinary drilling, tapping, and milling processing.

　　The effective travel of the three axes is 3 meters for the X axis, 300 millimeters for the Y axis, and 200 millimeters for the Z axis. The overall positioning accuracy of the machine is maintained within 0.02mm. When the machine tool is running, the spindle is linked with XYZ three axes, and the base worktable is in a stationary state, which enhances the stability of the entire machine tool.

　　The CNC drilling and tapping machine adopts a CNC five axis machining center CNC system, which can be programmed by computer or manually. It supports direct import of CAD drawings into automatically generated programs without the need for professional programmers, effectively saving labor costs. The system can store tens of thousands of programs.

　　This CNC drilling and tapping machine is equipped with an automatic detection head and an automatic tool setter. It comes with an automatic four sided centering function based on single point positioning. After the employee sends the workpiece, they enter the length and width dimensions of the product on a dedicated interface. The system controls the detection head to automatically find the four sided reference of the product, calculate the center value, and automatically enter the machine coordinates. Resolve the tedious process of manual sorting and tool alignment in traditional processing, reduce production assistance time, improve work efficiency, reduce requirements and investment in product fixtures, and lower production costs.

　　This CNC drilling and tapping machine is equipped with a spindle following servo disc tool magazine, which can be changed anytime and anywhere for the next processing step. The tool magazine can hold 10 different sizes of cutting tools, and the servo direct connection tool changing action makes tool changing convenient and time-saving. Each transmission shaft is controlled by an absolute value servo motor, which has higher positioning accuracy and is faster and more stable. The guide rail screw adopts the Taiwan Shangyin brand, which has stronger stability.

　　This CNC drilling and tapping machine is equipped with automatic lubricating oil pumps on each axis, and the system sprays oil regularly and quantitatively without the need for manual maintenance. The processing capacity of this equipment is between M3 and M16, and there are also high-speed spindles and higher power mechanical spindles that can be selected according to actual processing requirements. Before leaving the factory, the equipment is tested for accuracy and compensated using an API laser interferometer imported from the United States. After 48 hours of sample processing and running time testing. The equipment package will be delivered to the door, and technical personnel will provide free on-site installation, debugging, and trainin
