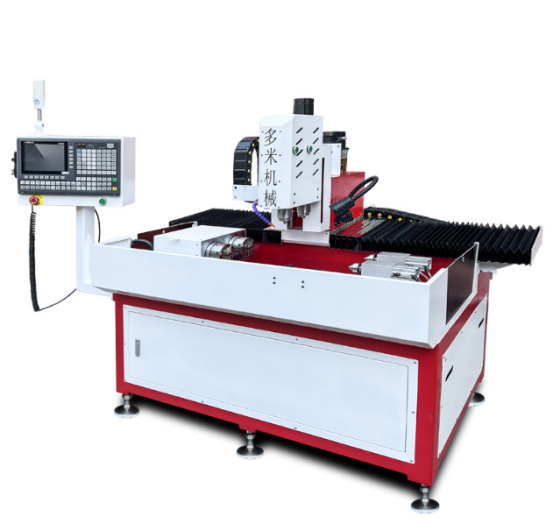

This is a four-axis high-speed CNC drilling machine customized by the customer. The main processing products of the customer are the small holes of 2 mm diameter on the four sides of the round pipe.

Our main spindle part uses two 60,000-rpm high-speed spindles, which are not only fast when processing small holes, but also have no burrs at the bottom.

Ordinary machine tools are generally only equipped with a four-axis, and our four-axis high-speed CNC drilling machine uses two harmonic deceleration four axes, double spindle and double four axes, you can process two products at the same time, and the efficiency is greatly improved.

Tail top we use pneumatic clamping, the product is convenient and fast when clamping, the pneumatic tail top is fixed on the two linear guide rails through the slider, so that when the left and right adjustment distance, there is no need to re-align the center.

The processing range of this four-axis CNC drilling machine is 600 mm in length, 200 mm in width of the front and back Y axis, and 200 mm above and below the Z axis.

The rotating shaft can grip a round tube with a diameter of less than 70 mm, and then it can do 360-degree automatic rotation processing.
