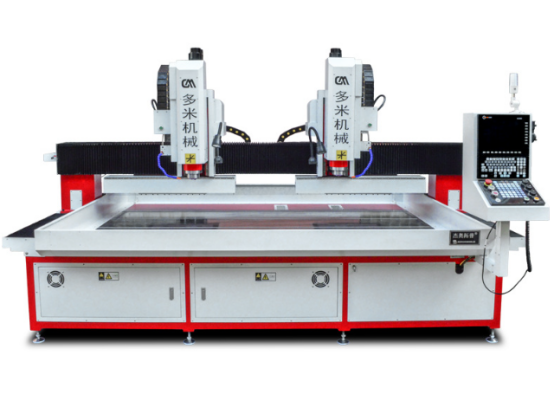

This is a double head CNC gantry drilling and tapping machine, using the moving beam type door structure movement mode, the beam adopts the bilateral double drive mode, which ensures the smooth operation of the machine tool and greatly improves the motion positioning accuracy.

This CNC gantry drilling and tapping machine uses a CNC double-channel bus control system, each drive shaft controls the movement separately, which improves the processing efficiency and also solves the problem of dual head movement interference.

The CNC gantry drilling machine is equipped with two imported machining center mechanical spindles, which can process thick steel plates with a maximum aperture of more than 20mm. The two spindles are controlled by independent channels, which can be processed simultaneously for different hole positions and different processes of a single product, and can also be processed simultaneously for double areas and double stations of the same product.

Each spindle is equipped with an independent automatic tool changing tool library, and each tool library can place 10 tools of different sizes, which solves the problem that there are multiple apertures to be processed on a product at the same time.

In addition, the base of this CNC gantry drilling machine has been strengthened and strengthened, the load-bearing capacity of the workbench has been greatly improved, and the whole machine tool is more stable when it is running. Finally, I want to tell you that this gantry drilling machine is not only double the efficiency of the ordinary single-head processing machine, but also easier to operate and use, and the area is greatly reduced. If there are customers and friends interested in this CNC gantry drilling and tapping machine, welcome to inquire!
