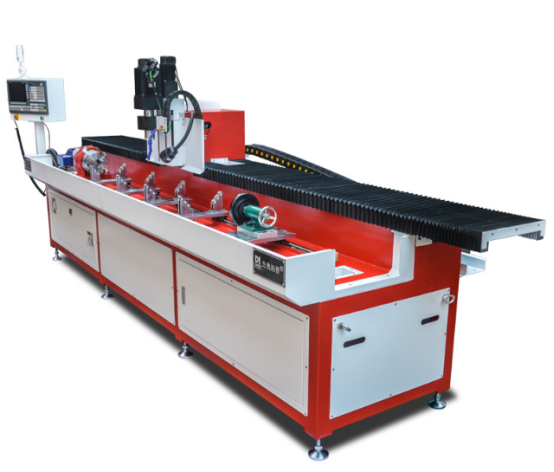

This is a special CNC drilling machine for round tubes, the effective stroke of this one is 3 meters, that is, the round tube within 3 meters can be processed on this, and then it is clamped by the rotating shaft, and then it is tightened by the tail spine.

Since the customer's product is relatively long, we consider that when the main shaft is moved to the middle section for drilling, processing, precision error or bit breaking may be caused by product vibration, so we have installed adjustable support seats in the middle. When the length of the customer's tube changes, we only need to push the support seat left and right to move it to the appropriate position for locking.

The clamping diameter of the rotating shaft of this round tube CNC drilling machine is an outside diameter of 60-180 mm, the rotating shaft is driven by the harmonic reducer and servo motor, with the three-jaw chuck, and the round tube rotates 360 degrees at any Angle.

When the size of the round tube changes, we only need to move the support seat back and forth, so that it can adapt to the size of the outer diameter of the product, so whether you are 180mm or 30mm or 60mm outer diameter, it can be used as a whole support seat.

We will design a layout of the support seat and spindle according to the material and machining requirements of our customers, so whether you are steel, copper or aluminum, or drilling, drilling and tapping, or multi-specification aperture machining, we can have the right model to recommend.

In addition, because this CNC drilling machine is an open workbench structure, when there are some heavy steel pipes, customers can directly lift the product to the workbench by driving, that is to say, a clamping can complete the multi-sided processing of the whole pipe.
