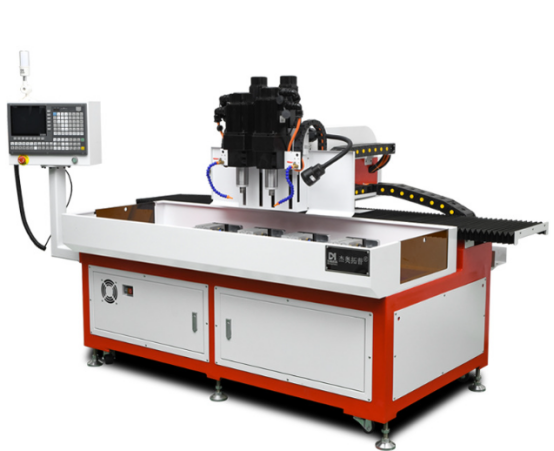

Today, we introduce this 1.5m stroke standard CNC flow drilling and tapping machine. This transmission component adopts imported precision guide rail, with high-precision helical rack transmission, which moves faster and runs smoothly.

After this CNC flow drilling and tapping machine is assembled, we use the laser laser instrument imported from the United States to detect and correct the error, so that the machine reset accuracy can reach within 0.02mm.

At the same time, this CNC flow drilling and tapping machine is a special machine for hot melt, the special machine has high production capacity, and the hot melt spindle is equipped with a heat dissipation device, which will not cause damage to the spindle due to high temperature for long-term use. The combination of the two shafts can complete the two processes of drilling and tapping at one time, ensuring efficient processing, no need to pull rivets, a molding and the dentition is clear.

The customer is to make the tooth hole of M8, the material is Q235 sheet, sheet hot melt processing. If there is no support under the product, when the spindle of the CNC flow drilling and tapping machine is processed upward, the material of the hole edge of the product is softened and deformed because of the heat effect, so we specially customized this fixture for the customer.

This CNC flow drilling and tapping machine makes the hot melt hole position of the product to avoid the hole, the whole product is compacted downward by the rotating cylinder, and the bottom plate is fitted to ensure that the product will not shake during processing, and there is a certain support. After processing, the worker presses the manual valve again, and the cylinder will be automatically released.

Of course, if a customer wants to connect the solenoid valve, it is also possible to control the automatic cylinder tightness through the program instructions of the CNC hot melt drilling and tapping machine. In addition, this CNC flow drilling and tapping machine as a special machine for hot melt also has a cooling water cycle device. If the later customer wants to replace the ordinary drilling tapping, the cooling cycle switch can be turned on, but the premise is to add cutting fluid.
