Many customers say that the accuracy of the machine tool does not depend on the selection of the screw and guide rail? But in fact, there are many factors that affect the accuracy of the whole machine. Today, we will go to the workshop site to see the accuracy control process of our whole machine tool.

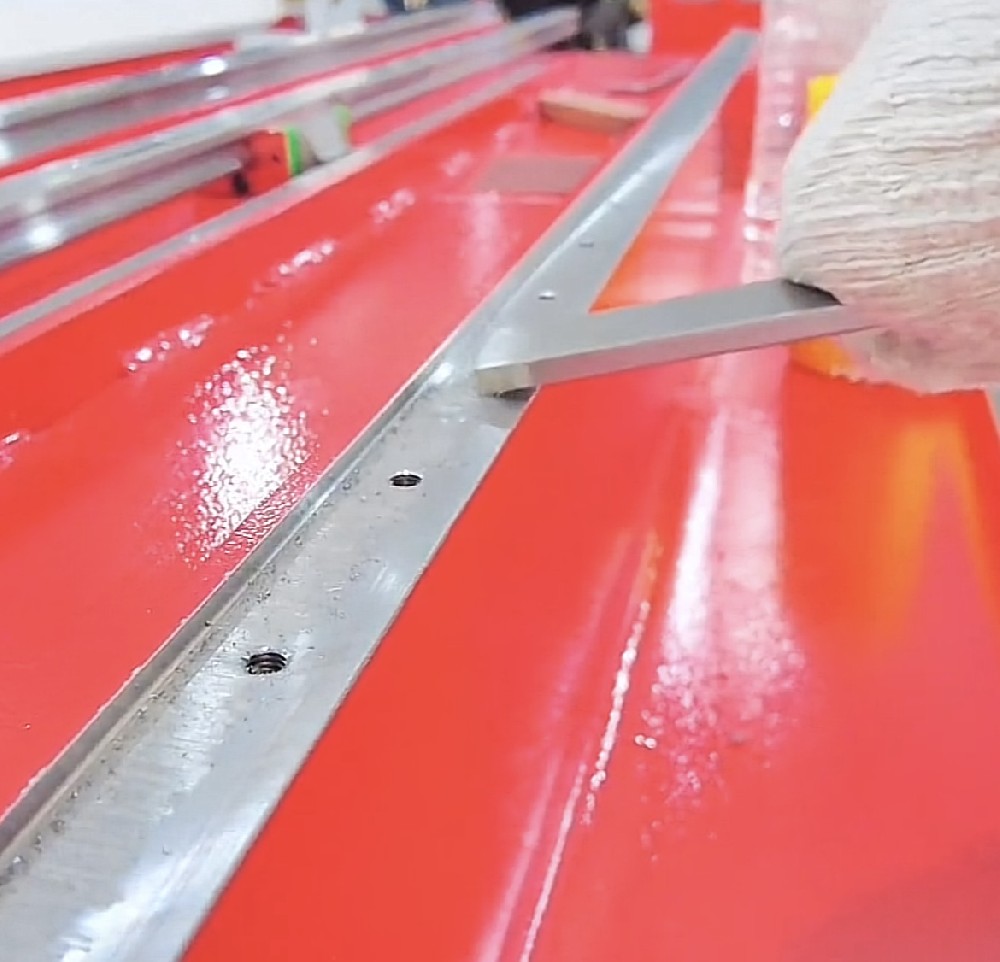

In the precision control of the machine tool, for the deviation of the base caused by the frame processing and the removal of stress, we will measure the error of the guide rail installation position during the installation process, and then manually shovel the error section several times. After finishing, you need to sand the whole thing and remove the burrs after shoveling. After polishing, install the whole guide rail and measure the error.

In the precision control of the machine tool, the lubricating oil tube is added to the guide rail of each axis, in addition to lubricating to reduce friction and extend life, but also to ensure that the thermal deformation caused by heat is reduced during high-speed friction, so as to ensure the accuracy of the machine tool, and the follow-up staff maintenance will be relatively simple.

In the precision control of the machine tool, the assembly of the whole machine is completed by using the American API laser laser instrument to measure the two-way repeat error, and after several adjustments, until the precision of the whole machine is less than or equal to 0.02mm, and the detection report is generated, the assembly process of a device is completed.

The whole machine test is completed, in the precision control of the machine tool, the next is the verification stage of the product, for customers with high precision requirements of small parts, sample processing is completed, we will use the second element to carry out a quality inspection of the size of the product, within the tolerance range can ship the machine tool, otherwise trace the cause and re-verify the machine tool.
