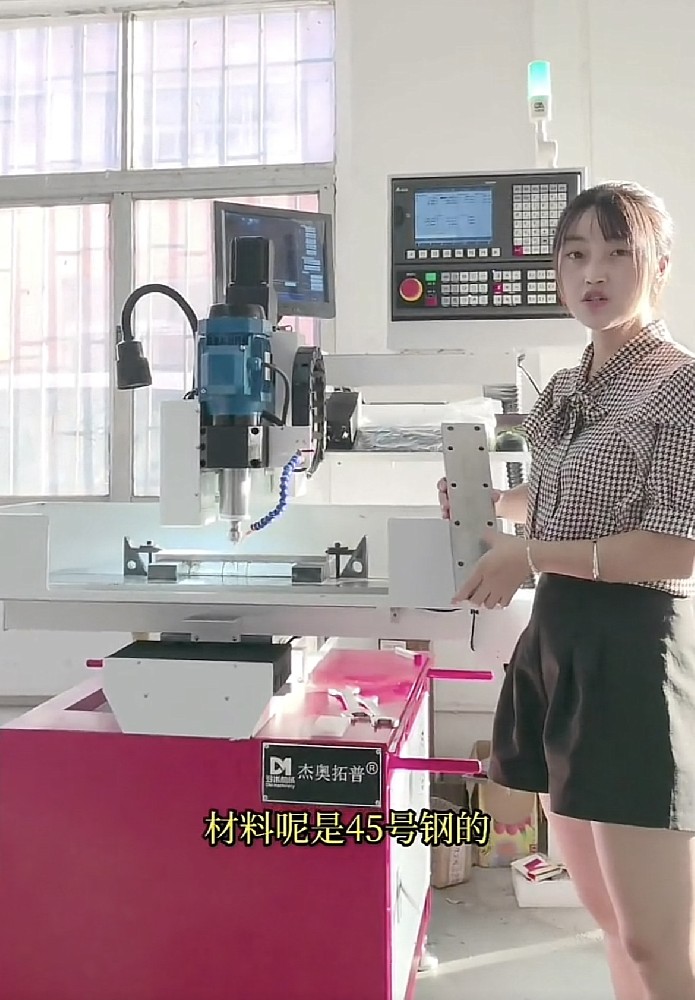

Today, we use CCD visual positioning CNC drilling machine to process a mold steel plate, and then it is a punching mold, the material is 45 steel, the drilling depth is 20mm, the hole diameter is 0.9mm.

Then the customer's accuracy requirements are relatively high, he wants three boards to overlap, and then the accuracy is in one bit. Because the product will be deformed after processing, our CCD visual positioning CNC drilling machine has added this visual positioning CCD system.

Our CCD visual positioning CNC drilling machine uses Taiwan Delta's CNC system, and then the mouse and keyboard are visually positioned. This is a visual positioning display, we use a high speed spindle of 6000 RPM. This is a servo motor that drives the z-axis, and it's driven by a separate servo motor.
