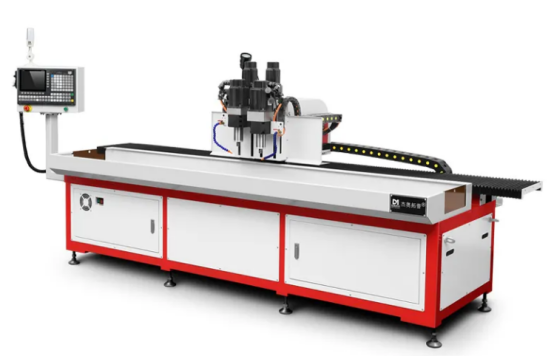

This is a CNC drilling and tapping equipment suitable for flow stretching drilling and tapping of thin-walled products. The effective processing travel is 2000mm on the X-axis, 300mm on the Y-axis, and 200mm on the Z-axis. The dual spindles are combined to simultaneously complete the two processes of hot-melt drilling and tapping.

The drilling capacity of the CNC flow drilling and tapping machine is between 1 and 16mm in diameter. It is suitable for flow drilling and tapping processing of tube or plate products. In addition, this equipment can also perform milling or engraving processing.

The CNC flow drilling and tapping machine is equipped with 4 sets of pneumatic tooling fixtures. Workers only need to place the products on it and press the switch. The clamping is convenient and fast. When changing products, the fixture adjustment is also very convenient. When the width of the product changes, it is only necessary to move the cylinder forward and backward to lock it. When the length of the product changes, just move the entire set of tooling left and right to the appropriate position and then lock it.

For products with a length of less than 1 meter, two workstations on the left and right can be set up for loading and unloading without stopping the machine for continuous processing. In the Y-axis direction, 5 to 8 products can be placed at a time according to their width for sequential processing, saving loading and unloading time.

The standard cnc five-axis machining center numerical control system can be programmed by computer or manually. It supports direct import of CAD files to automatically generate programs without the need for professional programmers. The system can store tens of thousands of programs.

This CNC flow drilling and tapping machine has a wide range of applications in various industries. It has many specific application cases in industries such as automotive parts, electric motorcycle frames, outdoor furniture, office furniture, display shelves, and sports and fitness equipment!

Before leaving the factory, the entire CNC flow drilling and tapping machine is tested for accuracy with an API laser scanner imported from the United States and then compensated. The repeat positioning accuracy of the entire machine is controlled within 0.02mm. After sample processing, a 48-hour time-space run test is conducted.
