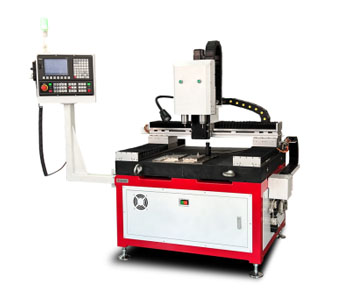

This is an ultra-precision high-speed drilling machine, with an effective processing stroke of 300mm on the X-axis * 500mm on the Y-axis * 200mm on the Z-axis. The moving beam portal structure is adopted, and the bilateral drive makes the equipment more stable.

The ultra-precision high-speed drilling machine is equipped with a 60,000-rpm high-speed spindle and adopts self-cooling and ceramic bearing technology, ensuring that when processing micro-holes in various metals and fiber /PC materials, the hole diameter error reaches the μ level accuracy, guaranteeing an ultra-high surface finish.

The marble worktable of the ultra-precision high-speed drilling machine, combined with a three-layer shock absorption structure, achieves a flatness requirement of 0.002mm, featuring extremely high stability and excellent wear resistance.

The worktable of the ultra-precision high-speed drilling machine is equipped with a contact-type automatic tool setter, which can automatically detect the wear of the tool edge and perform dynamic compensation in linkage with the numerical control system.

The Y-axis dual drive is a linear motor combined with a grating ruler for transmission, eliminating the traditional mechanical conversion structure. Therefore, it can achieve faster speed and higher precision. This direct drive method also significantly reduces mechanical wear and prolongs the service life of the equipment.

The ultra-precision high-speed drilling machine system adopts Delta cnc machining center numerical control system, which can be programmed by both computer and manual, and can store tens of thousands of programs.

The drilling diameter of this ultra-precision high-speed drilling machine ranges from 0.1 to 2.0mm. Additionally, there are various types of spindle-motor models that can be selected according to actual processing requirements.

Before leaving the factory, the ultra-precision high-speed drilling machine is tested for accuracy with an imported API laser from the United States and then compensated. After sample processing, it undergoes a 48-hour time-space run test.
