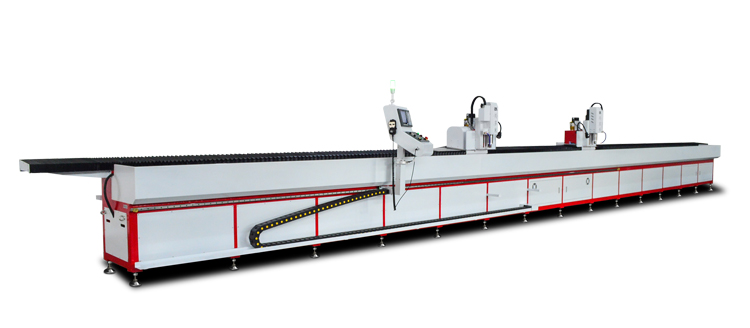

Model 1203 (2DR) In order to solve the problem of efficient drilling of stator tubes of petroleum equipment, Guangdong Duomi has built this 12-meter-long CNC double-head round tube drilling machine, with an effective processing stroke of 12 meters on the X axis * 200mm on the Z axis * 360 degrees rotation on the A axis. It is equipped with a precision servo harmonic rotating axis and a V-bearing support fixture to ensure the drilling stability of large pipes. 1203(2DR)

　　The CNC multi-channel numerical control system is used to control two sets of servo mechanical spindles respectively, and drilling can be performed simultaneously to achieve one-out-two high-efficiency production. The equipment has a high degree of automation and precise positioning, which reduces manual intervention and improves work efficiency and product quality. The equipment comes with a multi-touch intelligent anti-collision device to ensure that the two sets of spindles will not affect each other when processing at the same time. Ensure the accuracy of the drilling position.

　　The transmission shaft of the whole machine is controlled by an absolute servo motor, which has high positioning accuracy and is faster and more stable. The lead screw guide rail is made of Taiwan Hiwin brand, which has strong stability. The machine tool comes with an automatic lubrication system, which provides timed and quantitative lubrication and does not require manual maintenance.

　　Before the machine tool leaves the factory, the whole machine uses the API laser interferometer imported from the United States to detect the accuracy and then compensate it to ensure that the accuracy of the whole machine is controlled within 0.02mm;

　　All Duomi models are delivered to your door, and free door-to-door installation, debugging and training are provided.
